CF-SFU- 8 B IKO

Brand - IKO
Category - Easy Mounting Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CF-SFU- 8 B IKO
Stud Diameter (mm) - 8
Weight (kg) - 0.029
Outside Diameter of Outer Diameter (D) mm - 19
Width of Outer Ring (C) mm - 11
Boundary Dimension (d1) mm - 8
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 32
Boundary Dimension (B2) mm - 19.8
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (L1) mm - 5
Boundary Dimension (L2) mm - 10
Boundary Dimension (H) mm - 4
Boundary Dimension (e) mm - 0.5
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

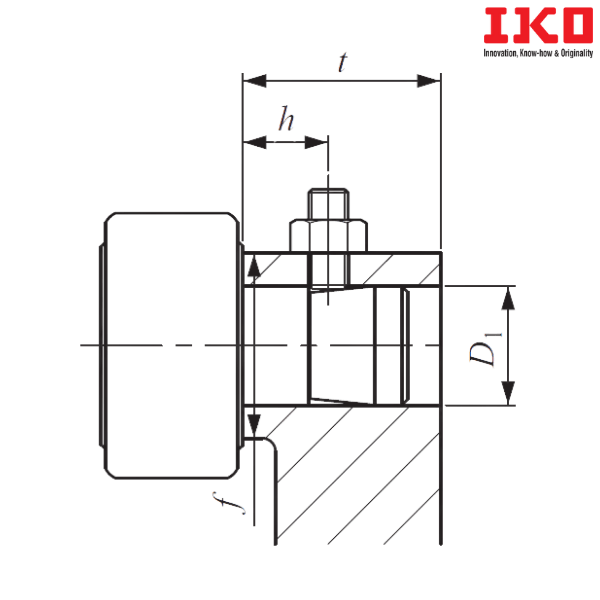

Mounting Dimensions (D1) mm - 8
Tolerance (mm) - (＋ 0.015)
Minimum Mounting Dimensions (t min) mm - 20
Minimum Mounting Dimension (f min) mm - 13
Mounting Dimensions (h) mm - 10
Basic Dynamic Load Rating (C) N - 4250
Basic Static Load Rating (C0) N - 4740
Maximum Allowable Static Load (N) - 4620

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF-SFU…B - Easy Mounting Type Cam Followers

** Images are for representation purposes only
