CF-SFU-20 B IKO

Brand - IKO
Category - Easy Mounting Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CF-SFU-20 B IKO
Stud Diameter (mm) - 20
Weight (kg) - 0.435
Outside Diameter of Outer Diameter (D) mm - 52
Width of Outer Ring (C) mm - 24
Boundary Dimension (d1) mm - 20
Maximum Boundary Dimension (B) mm - 25.6
Maximum Boundary Dimension (B1) mm - 50.5
Boundary Dimension (B2) mm - 24.9
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (L1) mm - 10
Boundary Dimension (L2) mm - 10
Boundary Dimension (H) mm - 8
Boundary Dimension (e) mm - 1
Minimum Allowable Value of Chamfer Dimension (rs min) - 1

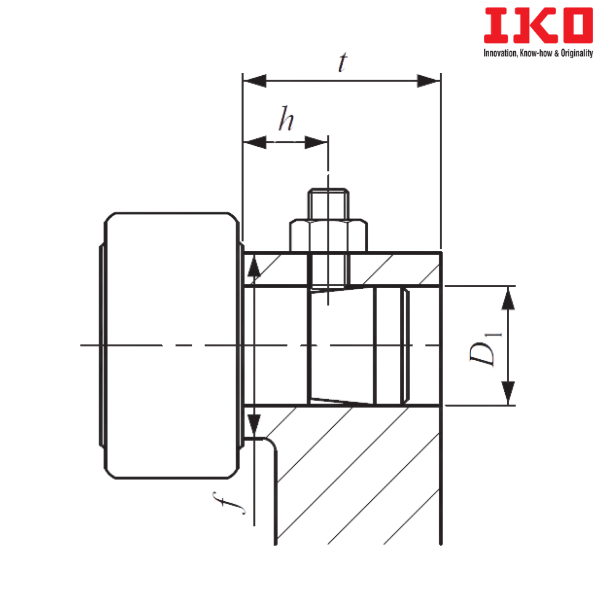

Mounting Dimensions (D1) mm - 20
Tolerance (mm) - (＋ 0.021)
Minimum Mounting Dimensions (t min) mm - 25
Minimum Mounting Dimension (f min) mm - 34
Mounting Dimensions (h) mm - 15
Basic Dynamic Load Rating (C) N - 20700
Basic Static Load Rating (C0) N - 34600
Maximum Allowable Static Load (N) - 34600

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF-SFU…B - Easy Mounting Type Cam Followers

** Images are for representation purposes only
