CF-SFU-10-1 B IKO

Brand - IKO
Category - Easy Mounting Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CF-SFU-10-1 B IKO
Stud Diameter (mm) - 10
Weight (kg) - 0.059
Outside Diameter of Outer Diameter (D) mm - 26
Width of Outer Ring (C) mm - 12
Boundary Dimension (d1) mm - 10
Maximum Boundary Dimension (B) mm - 13.2
Maximum Boundary Dimension (B1) mm - 33
Boundary Dimension (B2) mm - 19.8
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (L1) mm - 5
Boundary Dimension (L2) mm - 10
Boundary Dimension (H) mm - 4
Boundary Dimension (e) mm - 0.5
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

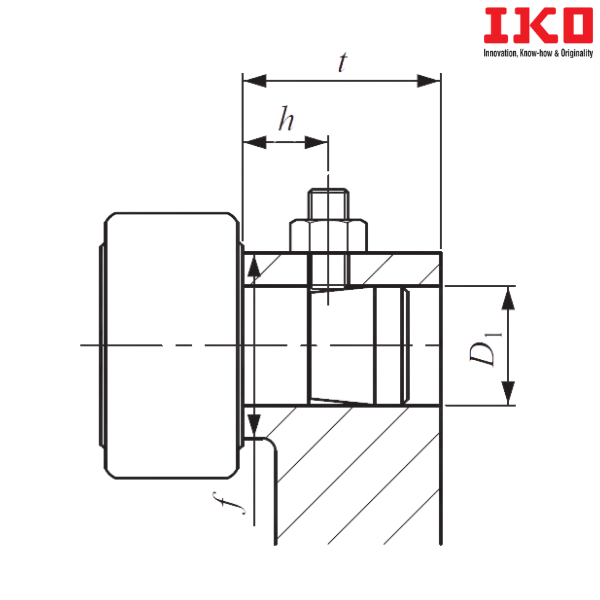

Mounting Dimensions (D1) mm - 10
Tolerance (mm) - (＋ 0.015)
Minimum Mounting Dimensions (t min) mm - 20
Minimum Mounting Dimension (f min) mm - 16
Mounting Dimensions (h) mm - 10
Basic Dynamic Load Rating (C) N - 5430
Basic Static Load Rating (C0) N - 6890
Maximum Allowable Static Load (N) - 6890

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------

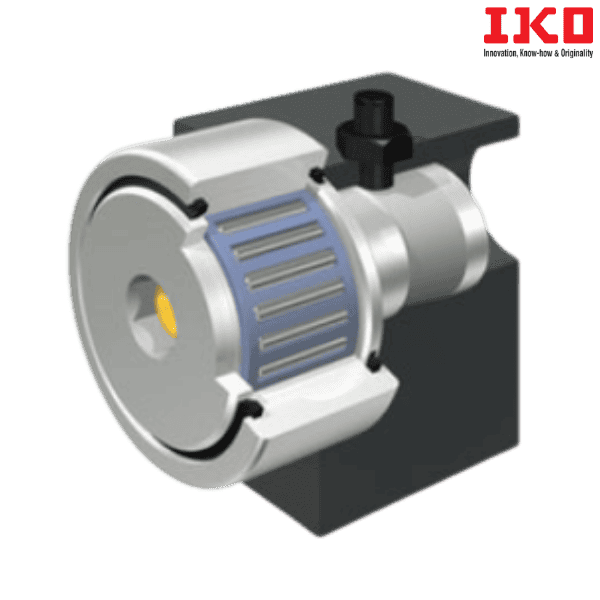

CF-SFU…B - Easy Mounting Type Cam Followers

** Images are for representation purposes only
