CF-RU1- 6 IKO

Brand - IKO
Category - Centralized Lubrication Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CF-RU1- 6 IKO
Type - With Crowned Outer Ring
Stud Diameter (mm) - 6
Weight (kg) - 0.0185

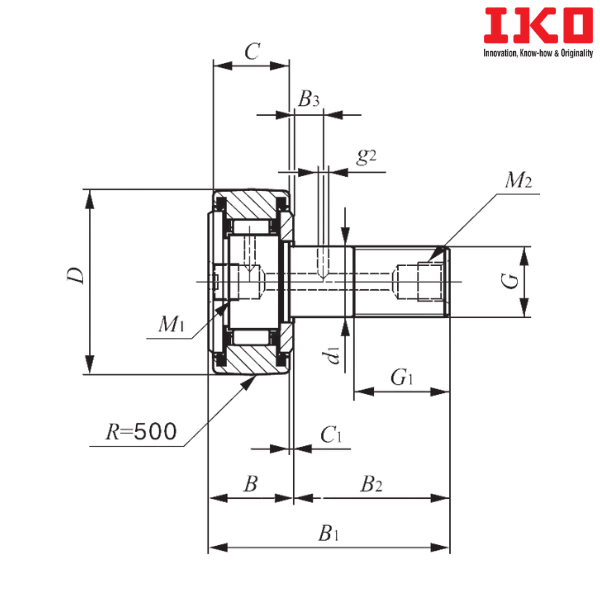

Outside Diameter of Outer Diameter (D) mm - 16
Width of Outer Ring (C) mm - 11
Boundary Dimension (d1) mm - 6
G - M 6 × 1
Boundary Dimension (G1) mm - 8
Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 28.2
Boundary Dimension (B2) mm - 16
Boundary Dimension (C1) mm - 0.6
M1 - M6× 0.75
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

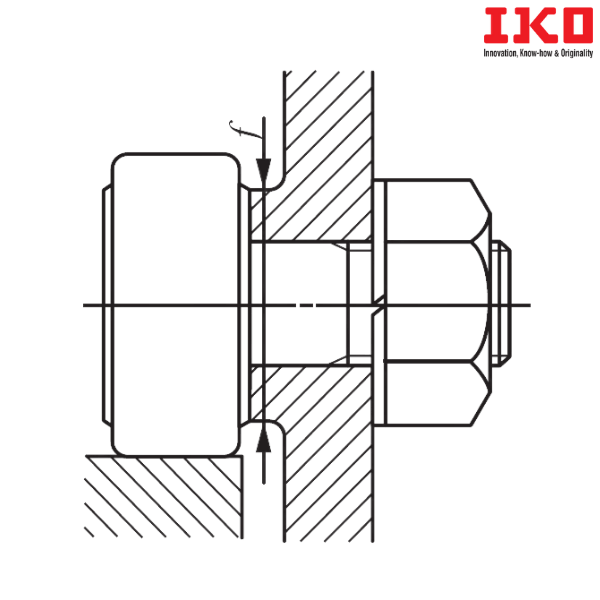

Minimum Mounting Dimension (f min) mm - 11
Maximum Tightening Torque (N-m) - 2.7
Basic Dynamic Load Rating (C) N - 3660
Basic Static Load Rating (C0) N - 3650
Maximum Allowable Static Load (N) - 1950
With Cylindrical Outer Ring - CF-FU1- 6

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------

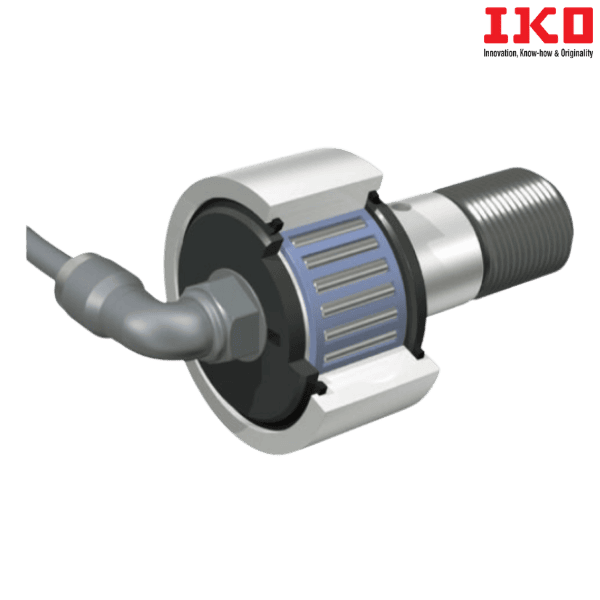

CF-RU1 - Centralized Lubrication Type Cam Followers(Crowned outer ring)

** Images are for representation purposes only
