CF-RU1-30 IKO

Brand - IKO
Category - Centralized Lubrication Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CF-RU1-30 IKO
Type - With Crowned Outer Ring
Stud Diameter (mm) - 30
Weight (kg) - 1.87

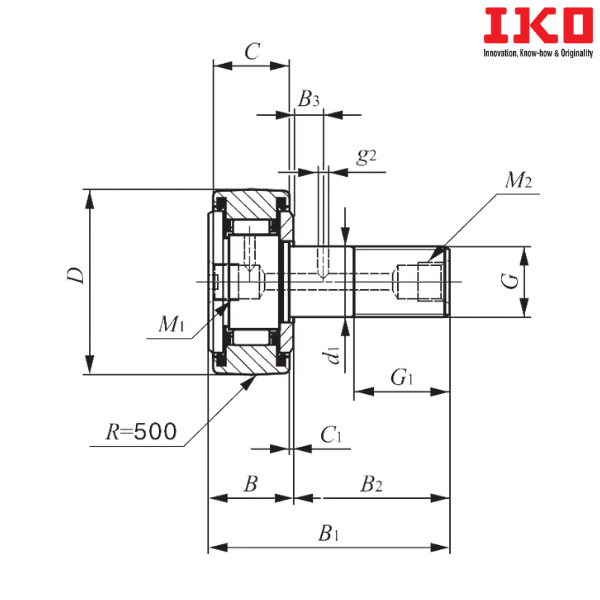

Outside Diameter of Outer Diameter (D) mm - 80
Width of Outer Ring (C) mm - 35
Boundary Dimension (d1) mm - 30
G - M30 × 1.5
Boundary Dimension (G1) mm - 32
Boundary Dimension (B) mm - 37
Maximum Boundary Dimension (B1) mm - 100
Boundary Dimension (B2) mm - 63
Boundary Dimension (B3) mm - 15
Boundary Dimension (C1) mm - 1
Boundary Dimension (g2) mm - 4
M1 - PT 1/8
M2 - PT 1/8
Minimum Allowable Value of Chamfer Dimension (rs min) - 1

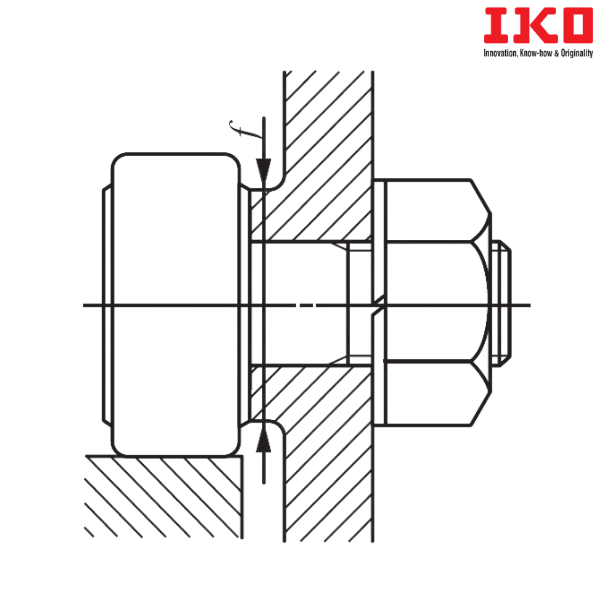

Minimum Mounting Dimension (f min) mm - 49
Maximum Tightening Torque (N-m) - 438
Basic Dynamic Load Rating (C) N - 45400
Basic Static Load Rating (C0) N - 85100
Maximum Allowable Static Load (N) - 85100
With Cylindrical Outer Ring - CF-FU1-30

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------

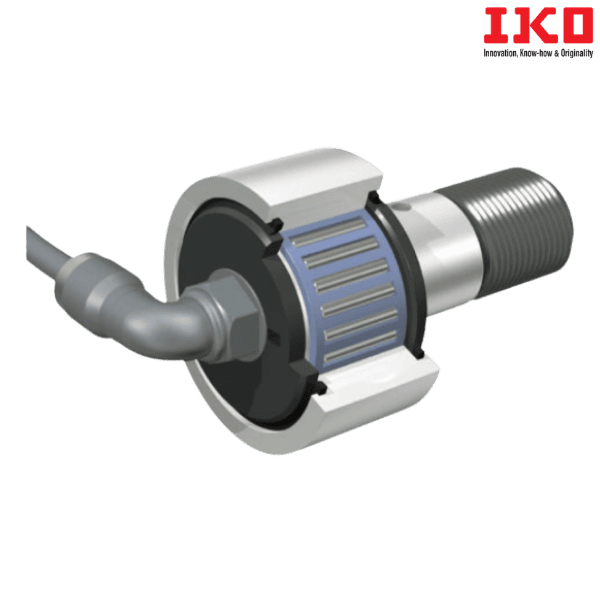

CF-RU1 - Centralized Lubrication Type Cam Followers(Crowned outer ring)

** Images are for representation purposes only
