CF-RU1-20-1 IKO

Brand - IKO
Category - Centralized Lubrication Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CF-RU1-20-1 IKO
Type - With Crowned Outer Ring
Stud Diameter (mm) - 20
Weight (kg) - 0.385

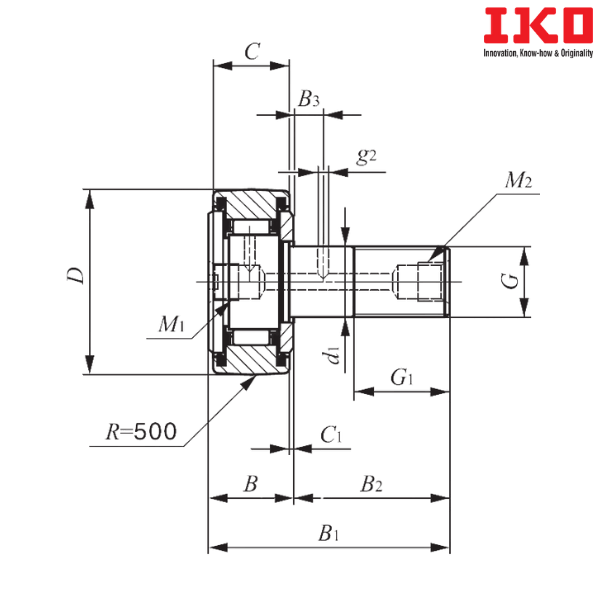

Outside Diameter of Outer Diameter (D) mm - 47
Width of Outer Ring (C) mm - 24
Boundary Dimension (d1) mm - 20
G - M20 × 1.5
Boundary Dimension (G1) mm - 21
Boundary Dimension (B) mm - 25.6
Maximum Boundary Dimension (B1) mm - 66.1
Boundary Dimension (B2) mm - 40.5
Boundary Dimension (B3) mm - 9
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g2) mm - 4
M1 - PT 1/8
M2 - PT 1/8
Minimum Allowable Value of Chamfer Dimension (rs min) - 1

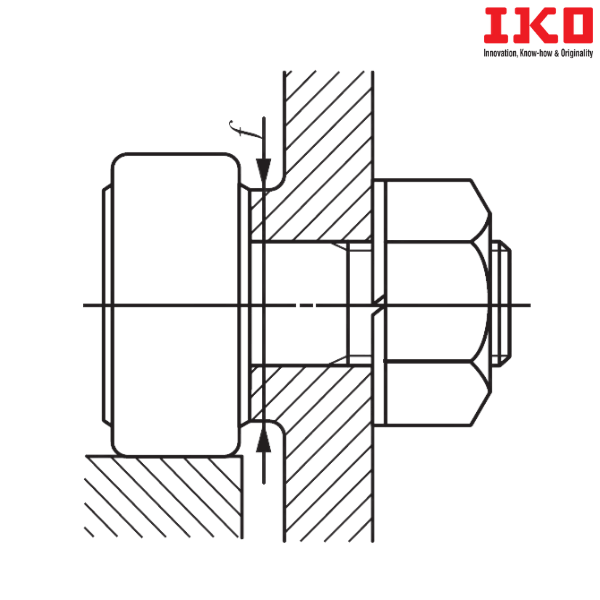

Minimum Mounting Dimension (f min) mm - 34
Maximum Tightening Torque (N-m) - 119
Basic Dynamic Load Rating (C) N - 20700
Basic Static Load Rating (C0) N - 34600
Maximum Allowable Static Load (N) - 34600
With Cylindrical Outer Ring - CF-FU1-20-1

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------

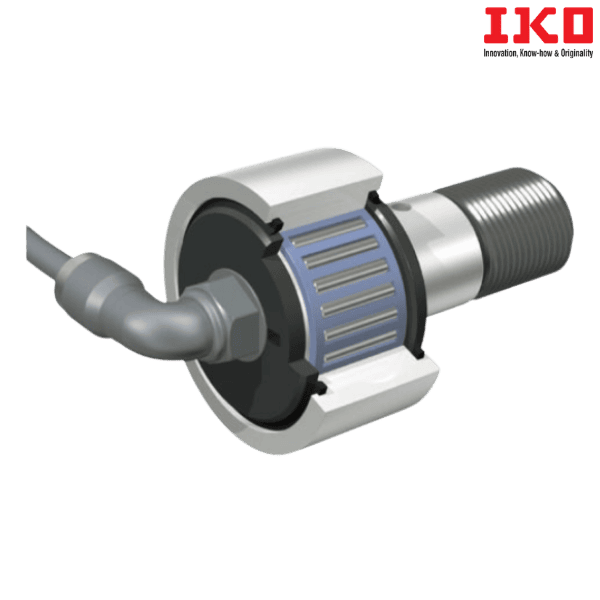

CF-RU1 - Centralized Lubrication Type Cam Followers(Crowned outer ring)

** Images are for representation purposes only
