CF-FU1-16 IKO

Brand - IKO

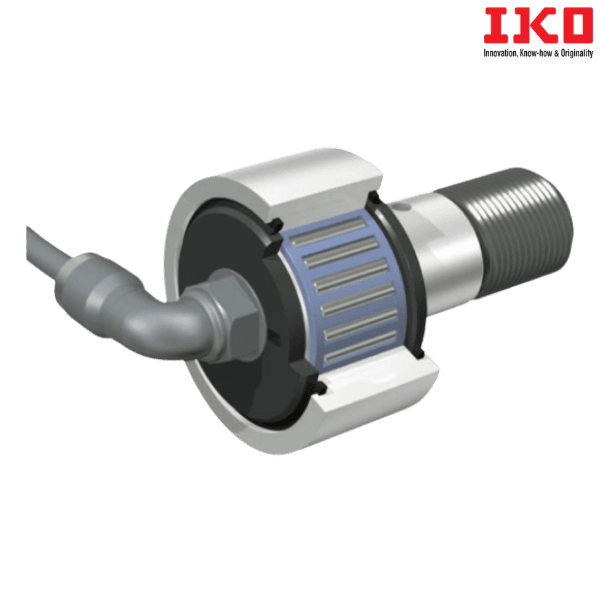

Category - Centralized Lubrication Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CF-FU1-16 IKO
Type - With Cylindrical Outer Ring
Stud Diameter (mm) - 16
Weight (kg) - 0.17

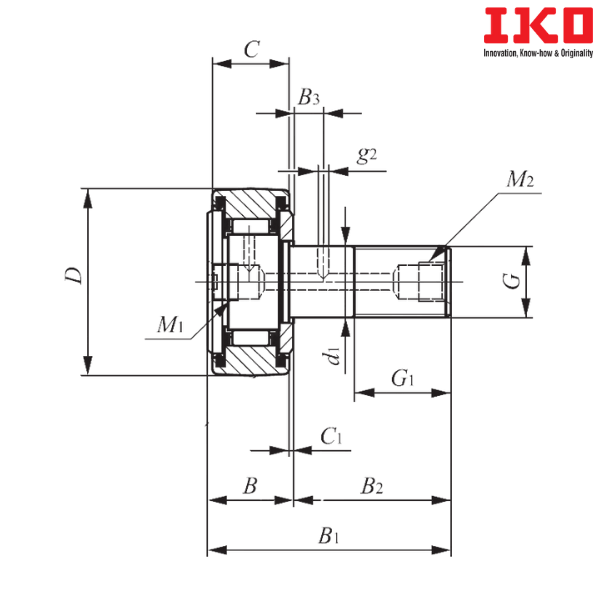

Outside Diameter of Outer Diameter (D) mm - 35
Width of Outer Ring (C) mm - 18
Boundary Dimension (d1) mm - 16
G - M16 × 1.5
Boundary Dimension (G1) mm - 17
Boundary Dimension (B) mm - 19.6
Maximum Boundary Dimension (B1) mm - 52.1
Boundary Dimension (B2) mm - 32.5
Boundary Dimension (B3) mm - 8
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g2) mm - 3
M1 - PT 1/8
M2 - PT 1/8

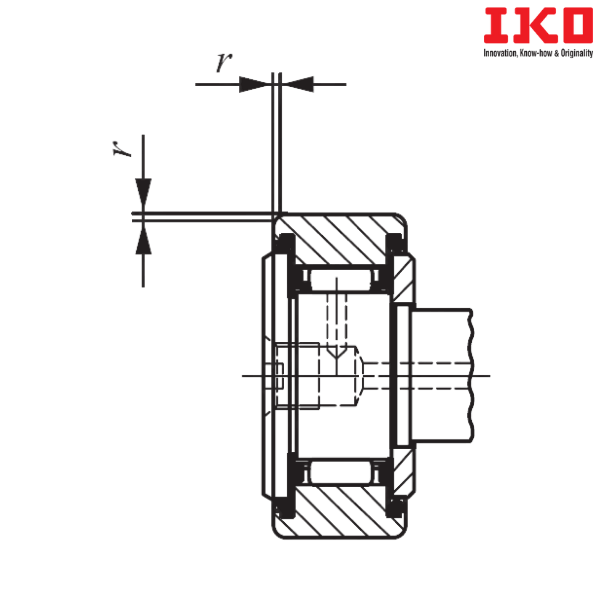

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6

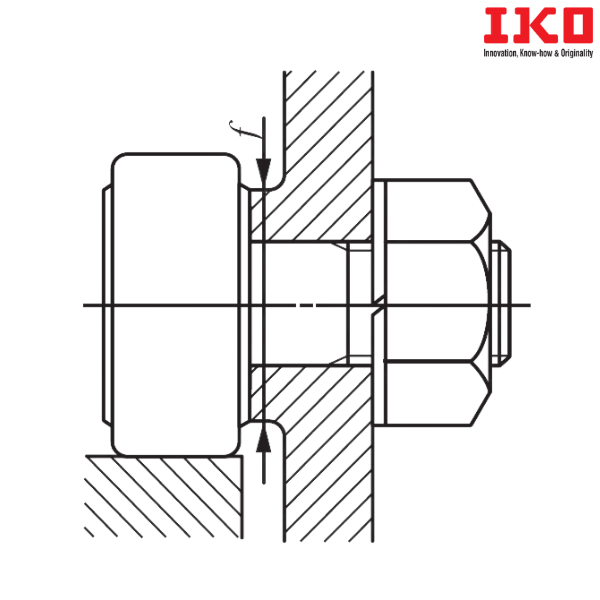

Minimum Mounting Dimension (f min) mm - 26
Maximum Tightening Torque (N-m) - 58.5
Basic Dynamic Load Rating (C) N - 12000
Basic Static Load Rating (C0) N - 18300
Maximum Allowable Static Load (N) - 18300
With Crowned Outer Ring - CF-RU1-16

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF-RU1 - Centralized Lubrication Type Cam Followers(Crowned outer ring)

** Images are for representation purposes only
