CF 8 VBUUM IKO

Brand - IKO
Category - Standard Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CF 8 VBUUM IKO
Also Known As - CF8VBUUM
Type - Sealed Type (With Cylindrical Outer Ring)

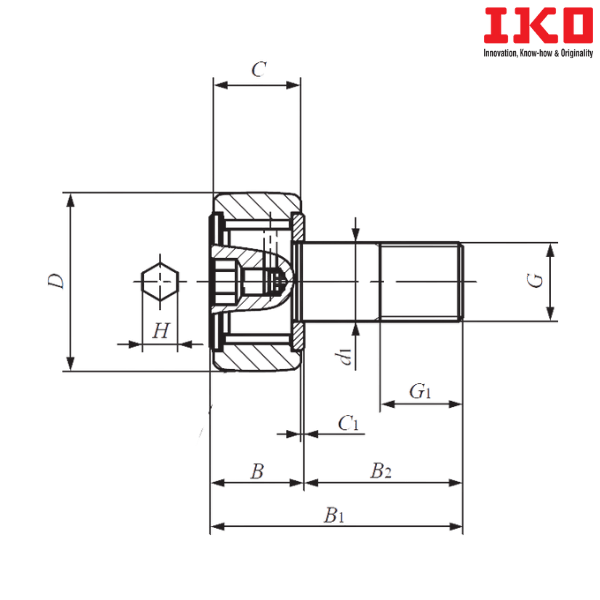

Stud Diameter (d) mm - 8
Weight (kg) - 0.029
Outside Diameter of Outer Diameter (D) mm - 19
Width of Outer Ring (C) mm - 11
Boundary Dimension (d1) mm - 8
G - M8×1
Boundary Dimension (G1) mm - 10
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 32.2
Boundary Dimension (B2) mm - 20
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 4

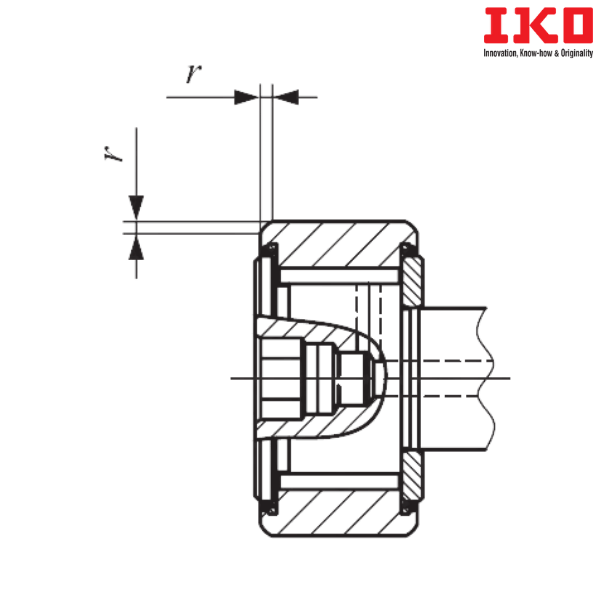

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

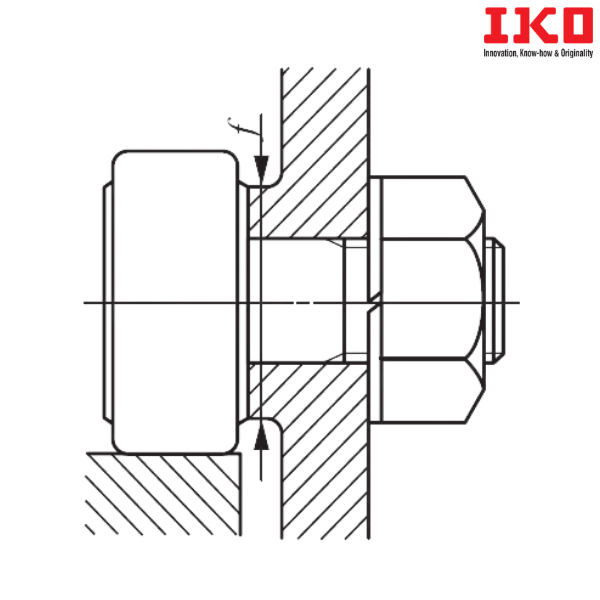

Minimum Mounting Dimension (f min) mm - 13
Maximum Tightening Torque (N-m) - 7.1
Basic Dynamic Load Rating (C) N - 8170
Basic Static Load Rating (C0) N - 11200
Maximum Allowable Static Load (N) - 4620
Shield Type (With Crowned Outer Ring) - CF 8 VBRM
Shield Type (With Cylindrical Outer Ring) - CF 8 VBM
Sealed Type (With Crowned Outer Ring) - CF 8 VBUURM

Notes :

Descriptions of Prefixes and Suffixes :
------------------------------------------------------
CF....B - Standard Type Cam Follower(Stud Head Hex Hole)
V - Full Complement Type
UU - Sealed Type
M - Thread pitch finer than standard

** Images are for representation purposes only
