CF 8 G IKO

Brand - IKO
Category - Cam Follower G (With Cage/Stud Head Hex Hole)
Item Number - CF 8 G IKO
Stud Diameter (mm) - 8
Weight (kg) - 0.0295

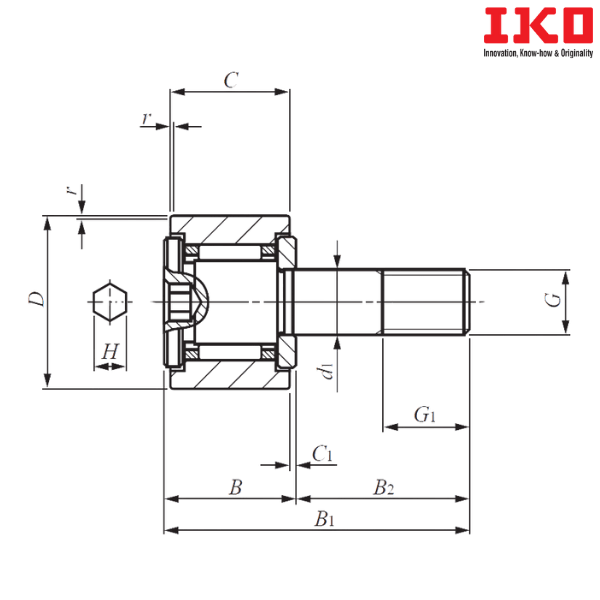

Outside Diameter of Outer Diameter (D) mm - 19
Width of Outer Ring (C) mm - 11
Boundary Dimension (d1) mm - 8
G - M8×1.25
Boundary Dimension (G1) mm - 10
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 32.2
Boundary Dimension (B2) mm - 20
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 4
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

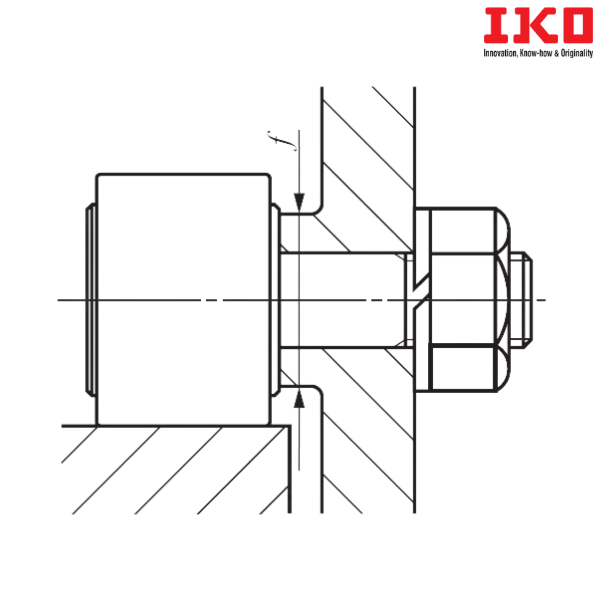

Minimum Mounting Dimension (f min) mm - 13
Maximum Tightening Torque (N-m) - 6.5
Basic Dynamic Load Rating (C) N - 4250
Basic Static Load Rating (C0) N - 4740
Maximum Allowable Static Load (N) - 4620

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CF...G - Cam Follower G

** Images are for representation purposes only
