CF 8 FBUUR IKO

Brand - IKO
Category - Standard Type Cam Followers (Stainless Steel Made Type/Stud Head Hex Hole)
Item Number - CF 8 FBUUR IKO
Also Known As - CF8FBUUR

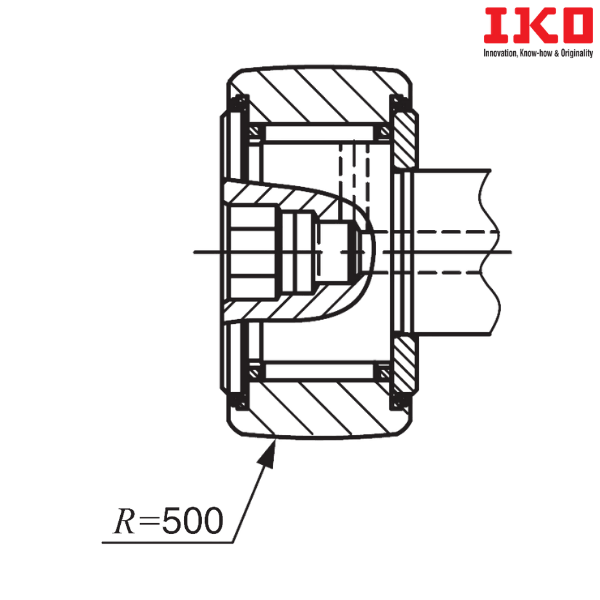

Type - Sealed Type (with Crowned Outer Ring)

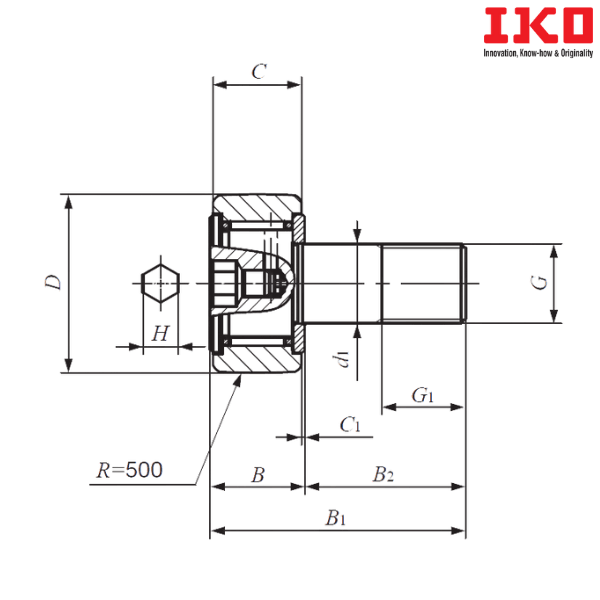

Stud Diameter (d) mm - 8
Weight (kg) - 0.0285
Outside Diameter of Outer Diameter (D) mm - 19
Width of Outer Ring (C) mm - 11
Boundary Dimension (d1) mm - 8
G - M 8×1.25
Boundary Dimension (G1) mm - 10
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 32.2
Boundary Dimension (B2) mm - 20
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 4
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

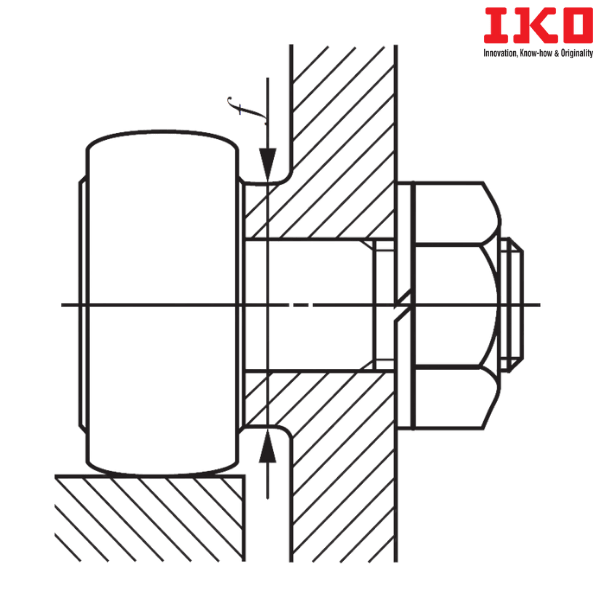

Minimum Mounting Dimension (f min) mm - 13
Maximum Tightening Torque (N-m) - 6.5
Basic Dynamic Load Rating (C) N - 3400
Basic Static Load Rating (C0) N - 3790
Maximum Allowable Static Load (N) - 3790
Shield Type (with Crowned Outer Ring) - CF 8 FBR
Shield Type (with Cylindrical Outer Ring) - CF 8 FB
Sealed Type (with Cylindrical Outer Ring) - CF 8 FBUU

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF....B - Standard Type Cam Follower(Stud Head Hex Hole)
F - Stainless Steel Mode
UU - Sealed Type

** Images are for representation purposes only
