CF 6 WBUUR/SG IKO

Brand - IKO
Category - C-Lube Cam Followers (With Cage / Stud Head Hex Hole)
Item Number - CF 6 WBUUR/SG IKO
Stud Diameter (mm) - 6
Weight (kg) - 0.0185
Outside Diameter of Outer Diameter (D) mm - 16
Width of Outer Ring (C) mm - 11
Boundary Dimension (d1) mm - 6
G - M 6 × 1
Boundary Dimension (G1) mm - 8
Maximum Boundary Dimension (B) mm - 12.2 max
Maximum Boundary Dimension (B1) mm - 28.2 max
Boundary Dimension (B2) mm - 16
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 3

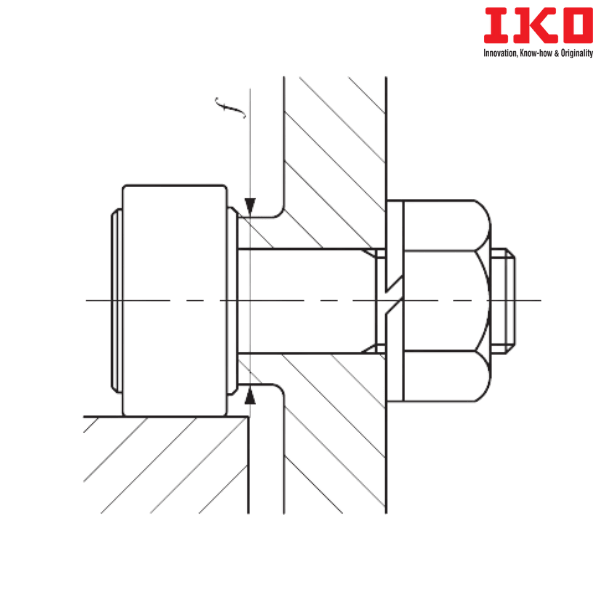

Minimum Mounting Dimension (f min) mm - 11
Maximum Tightening Torque (N-m) - 2.7
Basic Dynamic Load Rating (C) N - 3660
Basic Static Load Rating (C0) N - 3650
Maximum Allowable Static Load (N) - 1950

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF…WB…/SG - C-Lube Cam Followers
R - With Crowned Outer Ring
UU - Sealed Type

** Images are for representation purposes only
