CF 6 VB IKO

Brand - IKO
Category - Standard Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CF 6 VB IKO
Also Known As - CF6VB
Type - Shield Type (With Cylindrical Outer Ring)

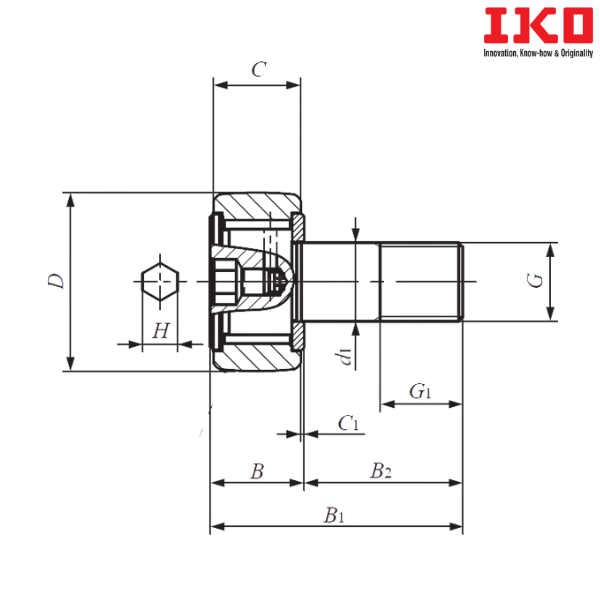

Stud Diameter (d) mm - 6
Weight (kg) - 0.019
Outside Diameter of Outer Diameter (D) mm - 16
Width of Outer Ring (C) mm - 11
Boundary Dimension (d1) mm - 6
G - M6×1
Boundary Dimension (G1) mm - 8
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 28.2
Boundary Dimension (B2) mm - 16
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 3

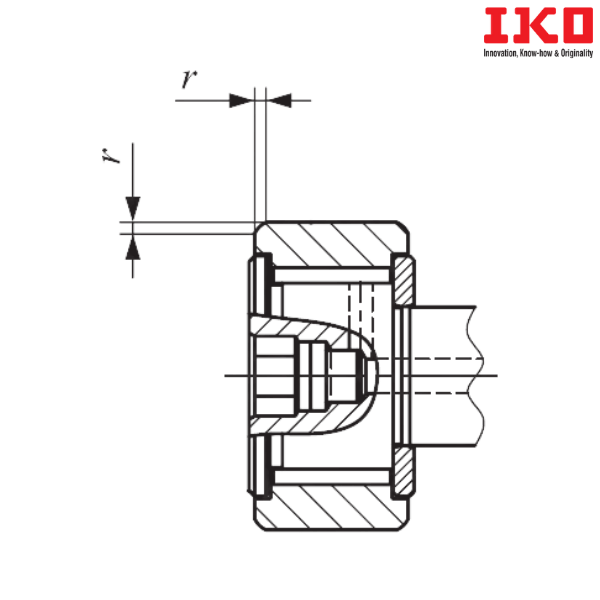

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

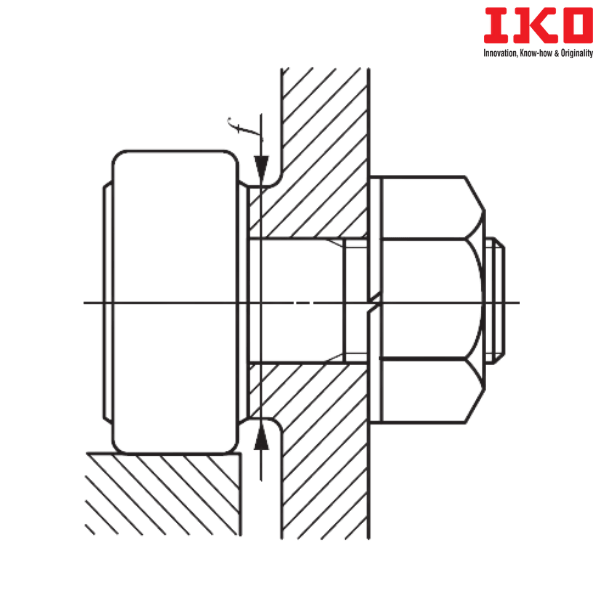

Minimum Mounting Dimension (f min) mm - 11
Maximum Tightening Torque (N-m) - 2.7
Basic Dynamic Load Rating (C) N - 6980
Basic Static Load Rating (C0) N - 8500
Maximum Allowable Static Load (N) - 1950
Shield Type (With Crowned Outer Ring) - CF 6 VBR
Sealed Type (With Crowned Outer Ring) - CF 6 VBUUR
Sealed Type (With Cylindrical Outer Ring) - CF 6 VBUU

Notes :

Descriptions of Prefixes and Suffixes :
------------------------------------------------------
CF....B - Standard Type Cam Follower(Stud Head Hex Hole)
V - Full Complement Type

** Images are for representation purposes only
