CF 6 G IKO

Brand - IKO
Category - Cam Follower G (With Cage/Stud Head Hex Hole)
Item Number - CF 6 G IKO
Stud Diameter (mm) - 6
Weight (kg) - 0.0195

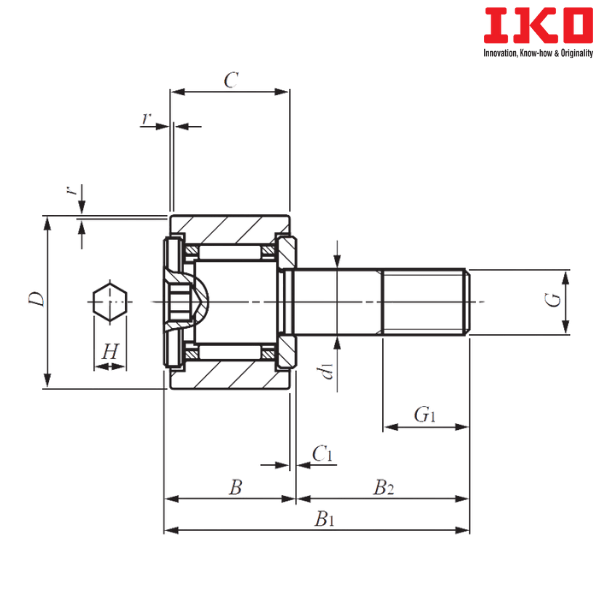

Outside Diameter of Outer Diameter (D) mm - 16
Width of Outer Ring (C) mm - 11
Boundary Dimension (d1) mm - 6
G - M6×1
Boundary Dimension (G1) mm - 8
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 28.2
Boundary Dimension (B2) mm - 16
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 3
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

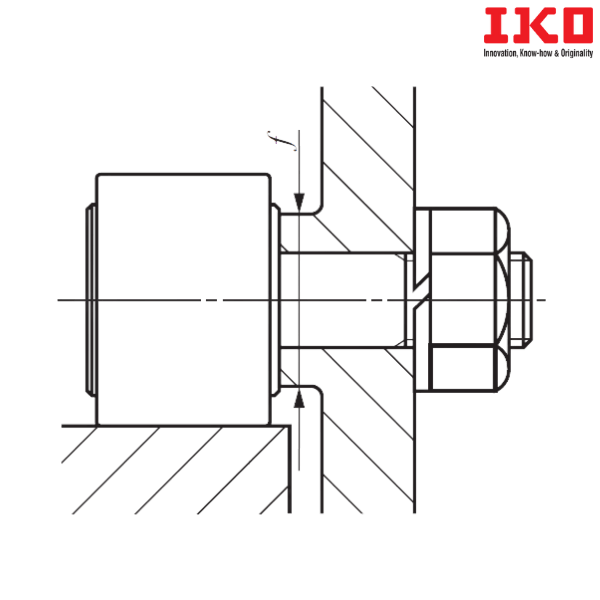

Minimum Mounting Dimension (f min) mm - 11
Maximum Tightening Torque (N-m) - 2.7
Basic Dynamic Load Rating (C) N - 3660
Basic Static Load Rating (C0) N - 3650
Maximum Allowable Static Load (N) - 1950

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CF...G - Cam Follower G

** Images are for representation purposes only
