CF 6 FBUU IKO

Brand - IKO
Category - Standard Type Cam Followers (Stainless Steel Made Type/Stud Head Hex Hole)
Item Number - CF 6 FBUU IKO
Also Known As - CF6FBUU
Type - Sealed Type (with Cylindrical Outer Ring)

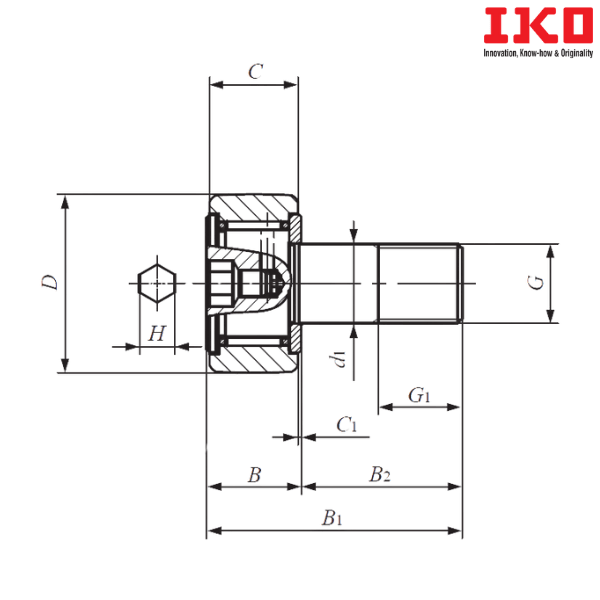

Stud Diameter (d) mm - 6
Weight (kg) - 0.0185
Outside Diameter of Outer Diameter (D) mm - 16
Width of Outer Ring (C) mm - 11
Boundary Dimension (d1) mm - 6
G - M 6×1
Boundary Dimension (G1) mm - 8
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 28.2
Boundary Dimension (B2) mm - 16
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 3

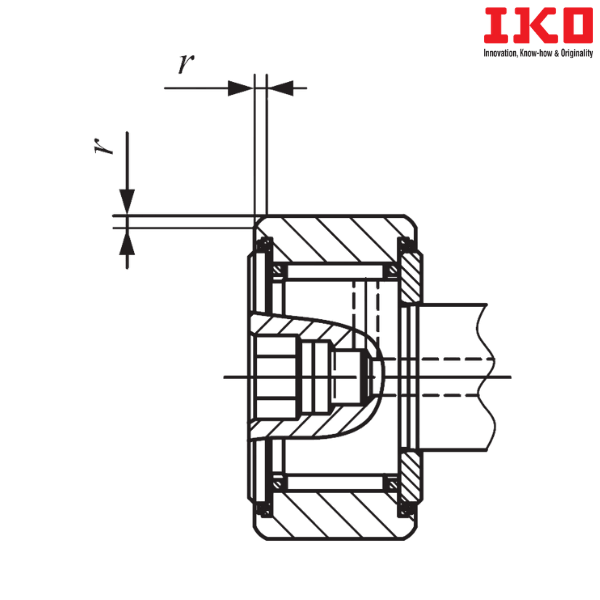

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

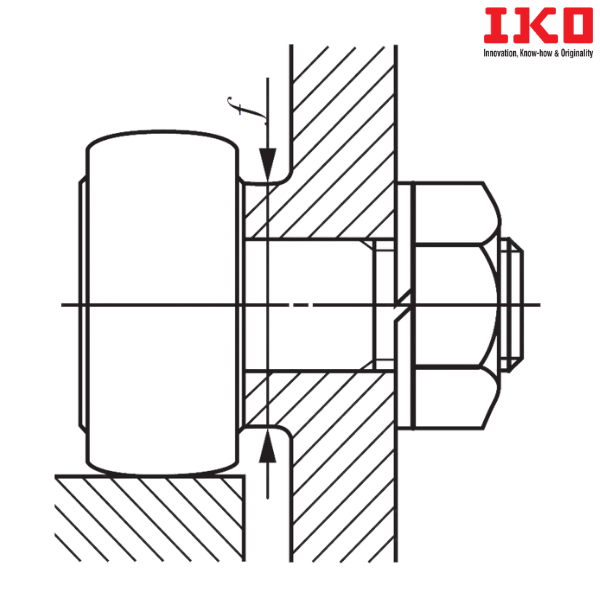

Minimum Mounting Dimension (f min) mm - 11
Maximum Tightening Torque (N-m) - 2.7
Basic Dynamic Load Rating (C) N - 2930
Basic Static Load Rating (C0) N - 2920
Maximum Allowable Static Load (N) - 1950
Shield Type (with Crowned Outer Ring) - CF 6 FBR
Shield Type (with Cylindrical Outer Ring) - CF 6 FB
Sealed Type (with Crowned Outer Ring) - CF 6 FBUUR

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF....B - Standard Type Cam Follower(Stud Head Hex Hole)
F - Stainless Steel Mode
UU - Sealed Type

** Images are for representation purposes only
