CF 5 FWBR IKO

Brand - IKO
Category - Thrust Disk Type Cam Followers / Stainless Steel Made (With Cage/Stud Head Hex Hole)
Item Number - CF 5 FWBR IKO
Also Known As - CF5FWBR
Type - Shield Type
Stud Diameter (mm) - 5
Weight (kg) - 0.0103

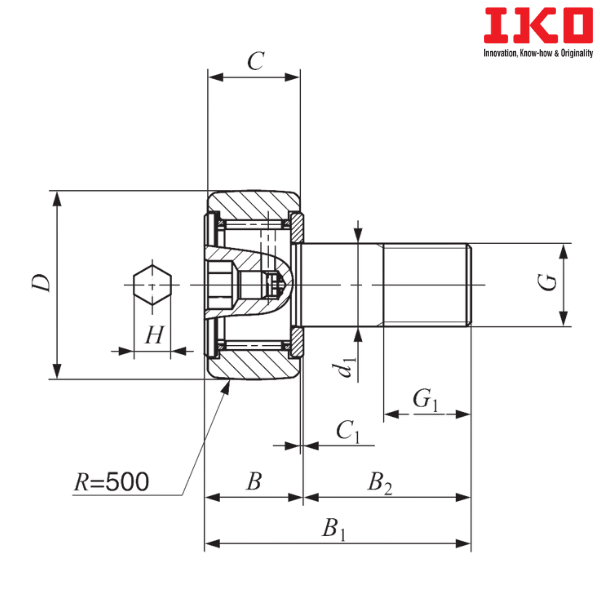

Outside Diameter of Outer Diameter (D) mm - 13
Width of Outer Ring (C) mm - 9
Boundary Dimension (d1) mm - 5
G - M 5 × 0.8
Boundary Dimension (G1) mm - 7.5
Boundary Dimension (B) mm - 10
Boundary Dimension (B1) mm - 23
Boundary Dimension (B2) mm - 13
Boundary Dimension (C1) mm - 0.5
Boundary Dimension (H) mm - 3

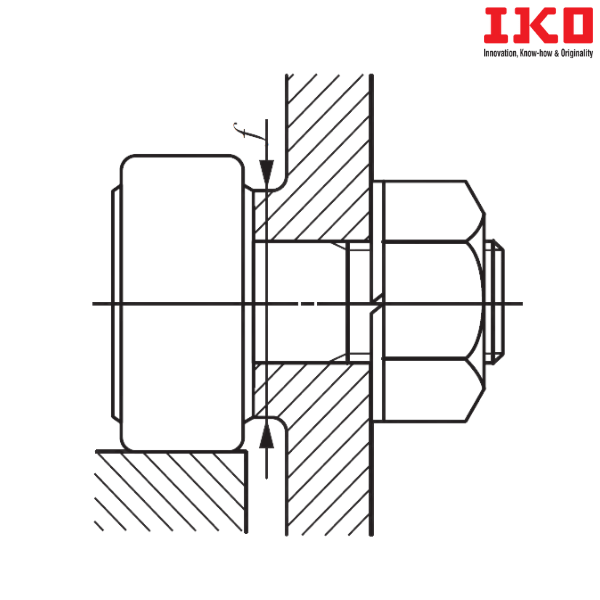

Minimum Mounting Dimension (f min) mm - 9.3
Maximum Tightening Torque (N-m) - 1.6
Basic Dynamic Load Rating (C) N - 1930
Basic Static Load Rating (C0) N - 1730
Maximum Allowable Static Load (N) - 1260
Sealed Type - CF 5 FWBUUR

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF...WB - Thrust Disk Type Cam Followers
R - With Crowned Outer Ring

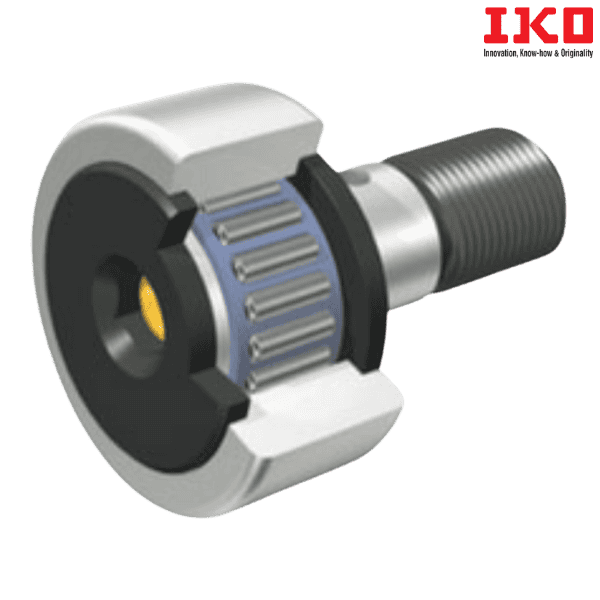

** Images are for representation purposes only
