CF 5 FBUU IKO

Brand - IKO
Category - Standard Type Cam Followers (Stainless Steel Made Type/Stud Head Hex Hole)
Item Number - CF 5 FBUU IKO
Also Known As - CF5FBUU
Type - Sealed Type (with Cylindrical Outer Ring)

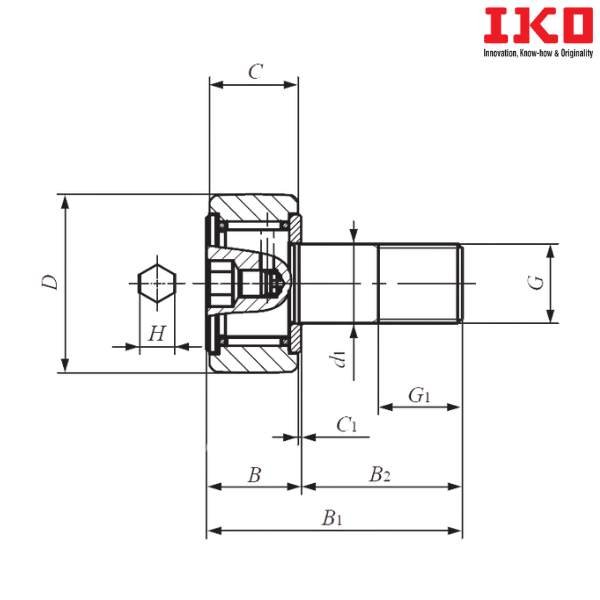

Stud Diameter (d) mm - 5
Weight (kg) - 0.0103
Outside Diameter of Outer Diameter (D) mm - 13
Width of Outer Ring (C) mm - 9
Boundary Dimension (d1) mm - 5
G - M 5×0.8
Boundary Dimension (G1) mm - 7.5
Boundary Dimension (B) mm - 10
Boundary Dimension (B1) mm - 23
Boundary Dimension (B2) mm - 13
Boundary Dimension (C1) mm - 0.5
Boundary Dimension (H) mm - 3

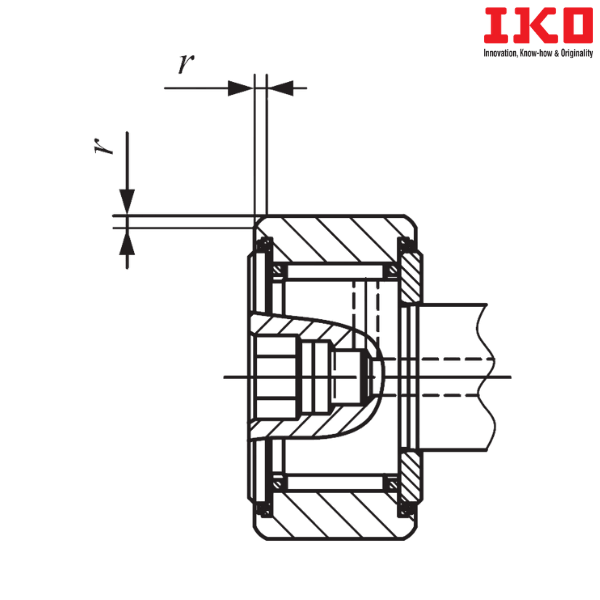

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

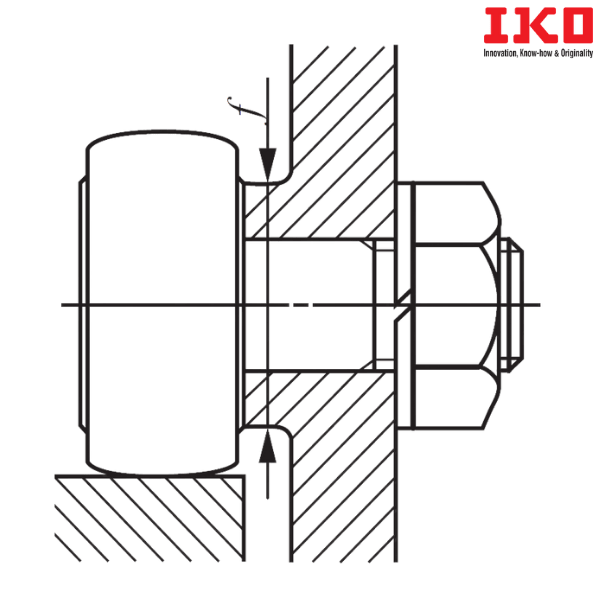

Minimum Mounting Dimension (f min) mm - 9.3
Maximum Tightening Torque (N-m) - 1.6
Basic Dynamic Load Rating (C) N - 1930
Basic Static Load Rating (C0) N - 1730
Maximum Allowable Static Load (N) - 1260
Shield Type (with Crowned Outer Ring) - CF 5 FBR
Shield Type (with Cylindrical Outer Ring) - CF 5 FB
Sealed Type (with Crowned Outer Ring) - CF 5 FBUUR

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF....B - Standard Type Cam Follower(Stud Head Hex Hole)
F - Stainless Steel Mode
UU - Sealed Type

** Images are for representation purposes only
