CF 4 FWBUUR IKO

Brand - IKO
Category - Thrust Disk Type Cam Followers / Stainless Steel Made (With Cage/Stud Head Hex Hole)
Item Number - CF 4 FWBUUR IKO
Also Known As - CF4FWBUUR
Type - Sealed Type
Stud Diameter (mm) - 4
Weight (kg) - 0.0074

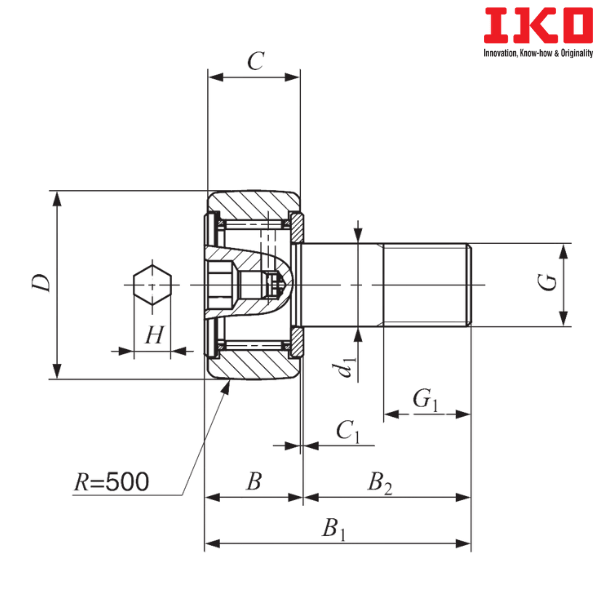

Outside Diameter of Outer Diameter (D) mm - 12
Width of Outer Ring (C) mm - 8
Boundary Dimension (d1) mm - 4
G - M 4 × 0.7
Boundary Dimension (G1) mm - 6
Boundary Dimension (B) mm - 9
Boundary Dimension (B1) mm - 20
Boundary Dimension (B2) mm - 11
Boundary Dimension (C1) mm - 0.5
Boundary Dimension (H) mm - 2.5

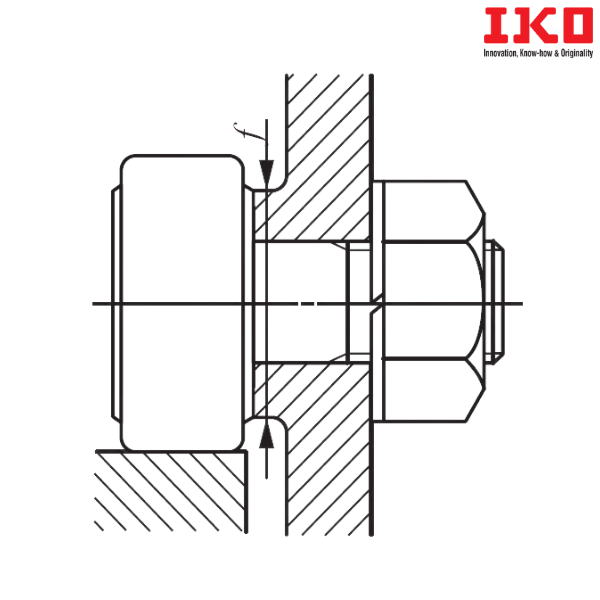

Minimum Mounting Dimension (f min) mm - 8.3
Maximum Tightening Torque (N-m) - 0.78
Basic Dynamic Load Rating (C) N - 1650
Basic Static Load Rating (C0) N - 1270
Maximum Allowable Static Load (N) - 834
Shield Type - CF 4 FWBR

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF...WB - Thrust Disk Type Cam Followers

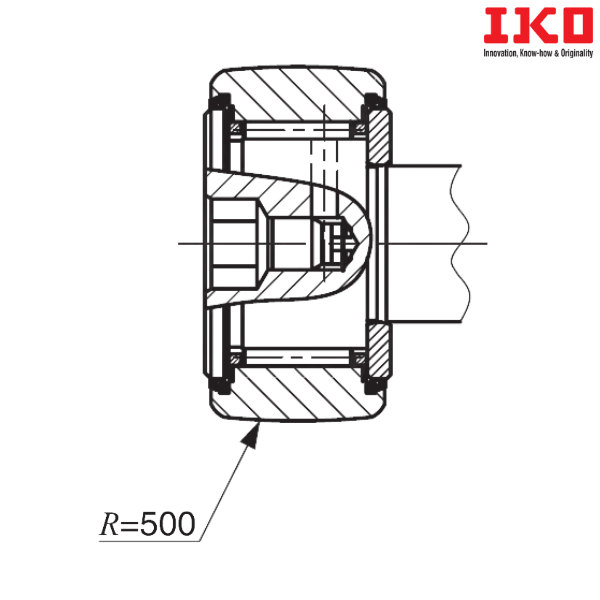

R - With Crowned Outer Ring
UU - Sealed Type

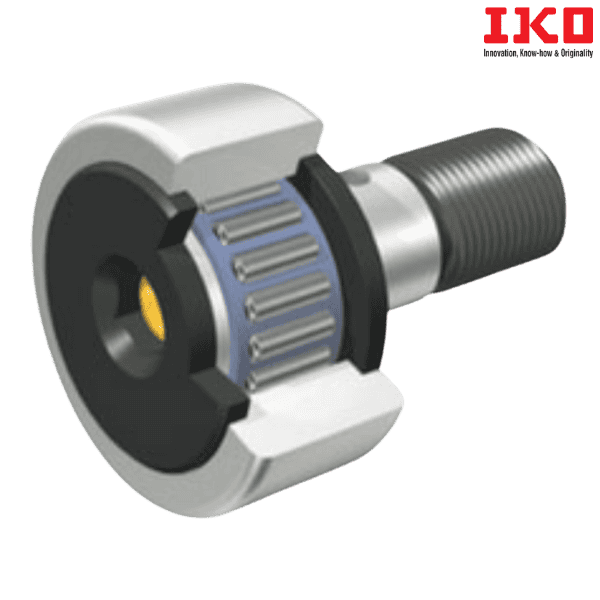

** Images are for representation purposes only
