CF 4 FB IKO

Brand - IKO
Category - Standard Type Cam Followers (Stainless Steel Made Type/Stud Head Hex Hole)
Item Number - CF 4 FB IKO
Also Known As - CF4FB
Type - Shield Type (with Cylindrical Outer Ring)

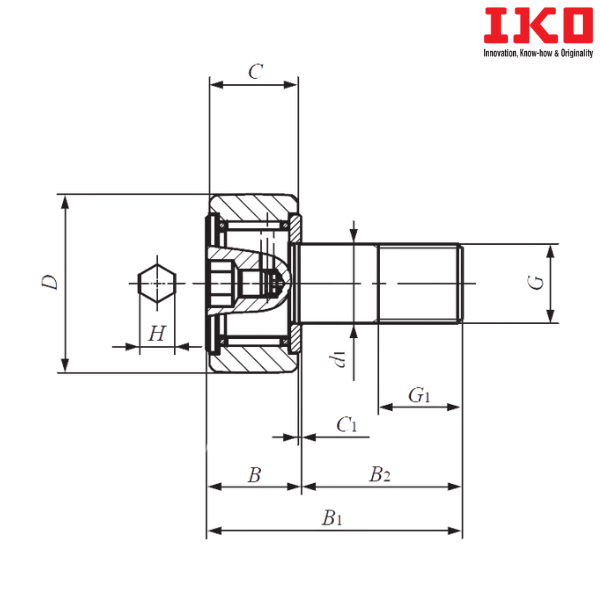

Stud Diameter (d) mm - 4
Weight (kg) - 0.0074
Outside Diameter of Outer Diameter (D) mm - 12
Width of Outer Ring (C) mm - 8
Boundary Dimension (d1) mm - 4
G - M 4×0.7
Boundary Dimension (G1) mm - 6
Boundary Dimension (B) mm - 9
Boundary Dimension (B1) mm - 20
Boundary Dimension (B2) mm - 11
Boundary Dimension (C1) mm - 0.5
Boundary Dimension (H) mm - 2.5

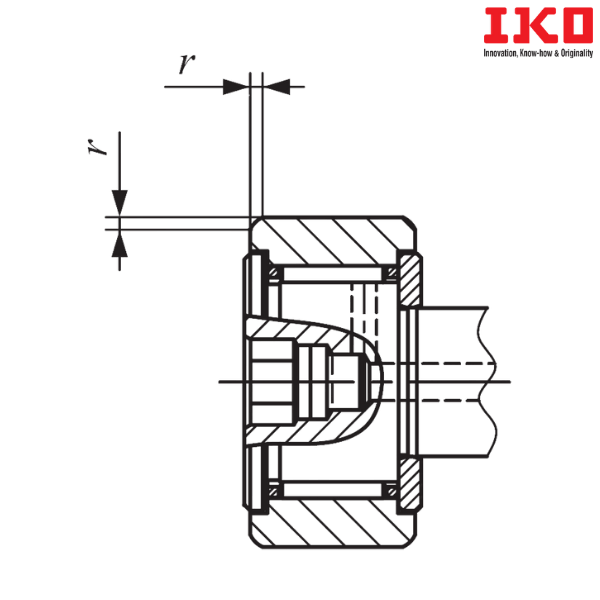

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

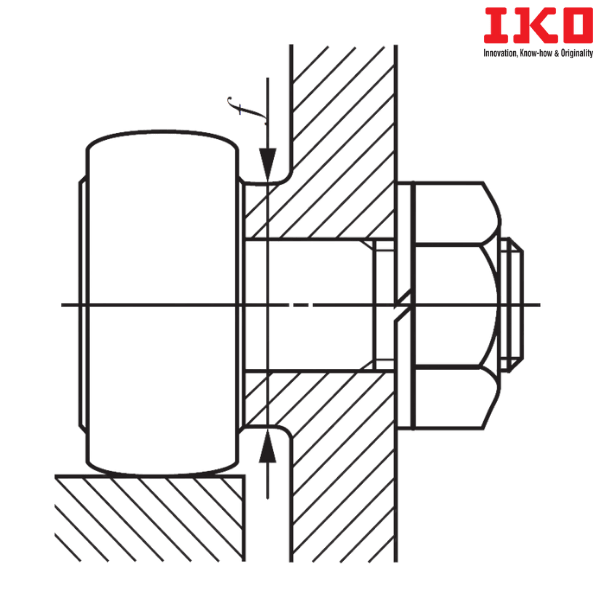

Minimum Mounting Dimension (f min) mm - 8.3
Maximum Tightening Torque (N-m) - 0.78
Basic Dynamic Load Rating (C) N - 1650
Basic Static Load Rating (C0) N - 1270
Maximum Allowable Static Load (N) - 834
Shield Type (with Crowned Outer Ring) - CF 4 FBR
Sealed Type (with Crowned Outer Ring) - CF 4 FBUUR
Sealed Type (with Cylindrical Outer Ring) - CF 4 FBUU

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF....B - Standard Type Cam Follower(Stud Head Hex Hole)
F - Stainless Steel Mode

** Images are for representation purposes only
