CF 3 WBR IKO

Brand - IKO

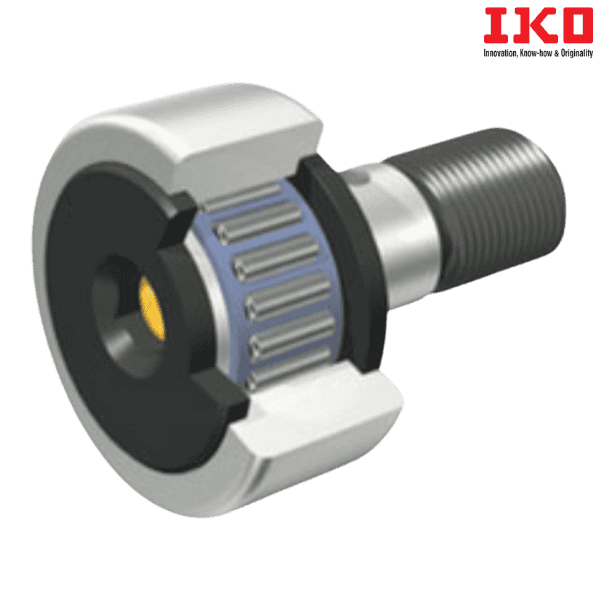

Category - Thrust Disk Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CF 3 WBR IKO
Also Known As - CF3WBR
Type - Shield Type
Stud Diameter (mm) - 3
Weight (kg) - 0.0043

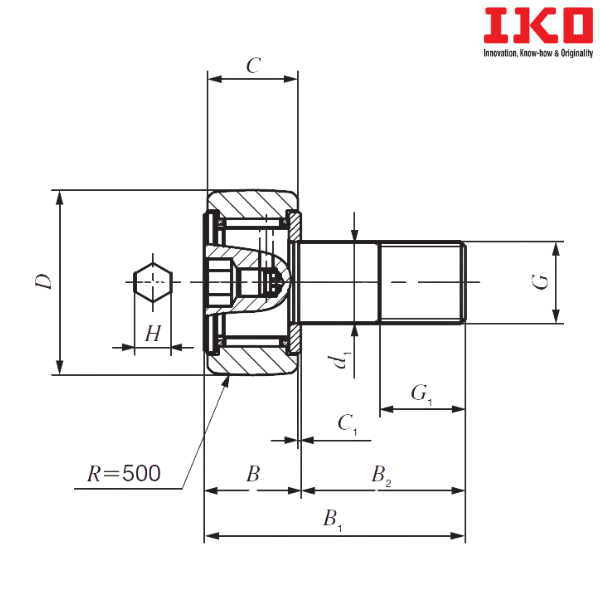

Outside Diameter of Outer Diameter (D) mm - 10
Width of Outer Ring (C) mm - 7
Boundary Dimension (d1) mm - 3
G - M 3 × 0.5
Boundary Dimension (G1) mm - 5
Boundary Dimension (B) mm - 8
Boundary Dimension (B1) mm - 17
Boundary Dimension (B2) mm - 9
Boundary Dimension (C1) mm - 0.5
Boundary Dimension (H) mm - 2

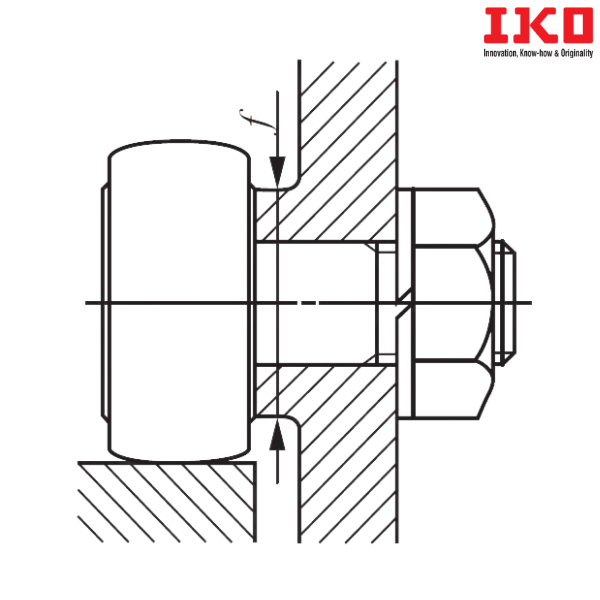

Minimum Mounting Dimension (f min) mm - 6.8
Maximum Tightening Torque (N-m) - 0.34
Basic Dynamic Load Rating (C) N - 1500
Basic Static Load Rating (C0) N - 1020
Maximum Allowable Static Load (N) - 384
Sealed Type - CF 3 WBUUR

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF...WB - Thrust Disk Type Cam Followers
R - With Crowned Outer Ring

** Images are for representation purposes only
