CF 3 FBUUR IKO

Brand - IKO
Category - Standard Type Cam Followers (Stainless Steel Made Type/Stud Head Hex Hole)
Item Number - CF 3 FBUUR IKO
Also Known As - CF3FBUUR

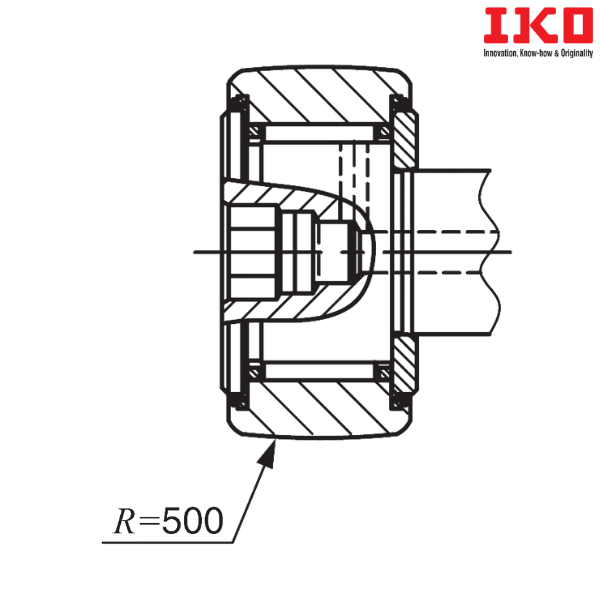

Type - Sealed Type (with Crowned Outer Ring)

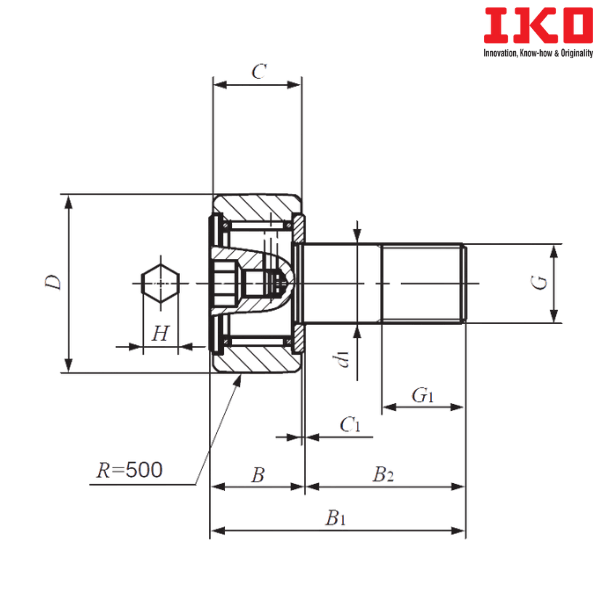

Stud Diameter (d) mm - 3
Weight (kg) - 0.0043
Outside Diameter of Outer Diameter (D) mm - 10
Width of Outer Ring (C) mm - 7
Boundary Dimension (d1) mm - 3
G - M 3×0.5
Boundary Dimension (G1) mm - 5
Boundary Dimension (B) mm - 8
Boundary Dimension (B1) mm - 17
Boundary Dimension (B2) mm - 9
Boundary Dimension (C1) mm - 0.5
Boundary Dimension (H) mm - 2
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.2

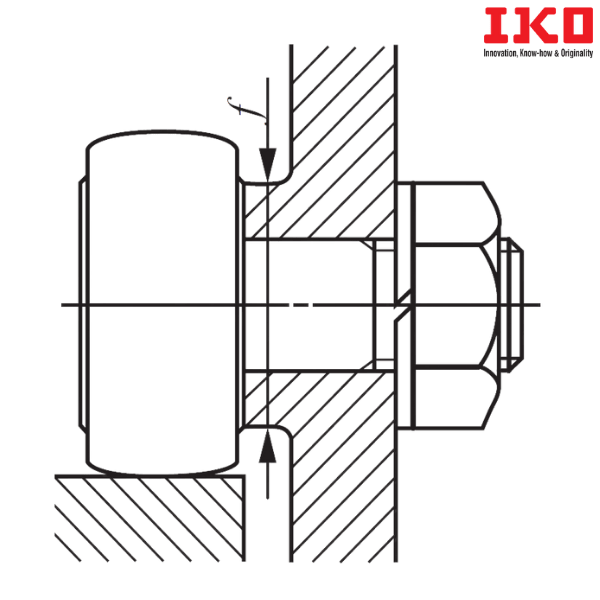

Minimum Mounting Dimension (f min) mm - 6.8
Maximum Tightening Torque (N-m) - 0.34
Basic Dynamic Load Rating (C) N - 1200
Basic Static Load Rating (C0) N - 813
Maximum Allowable Static Load (N) - 384
Shield Type (with Crowned Outer Ring) - CF 3 FBR
Shield Type (with Cylindrical Outer Ring) - CF 3 FB
Sealed Type (with Cylindrical Outer Ring) - CF 3 FBUU

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF....B - Standard Type Cam Follower(Stud Head Hex Hole)
F - Stainless Steel Mode
UU - Sealed Type

** Images are for representation purposes only
