CF 20 FBUU IKO

Brand - IKO
Category - Standard Type Cam Followers (Stainless Steel Made Type/Stud Head Hex Hole)
Item Number - CF 20 FBUU IKO
Also Known As - CF20FBUU
Type - Sealed Type (with Cylindrical Outer Ring)

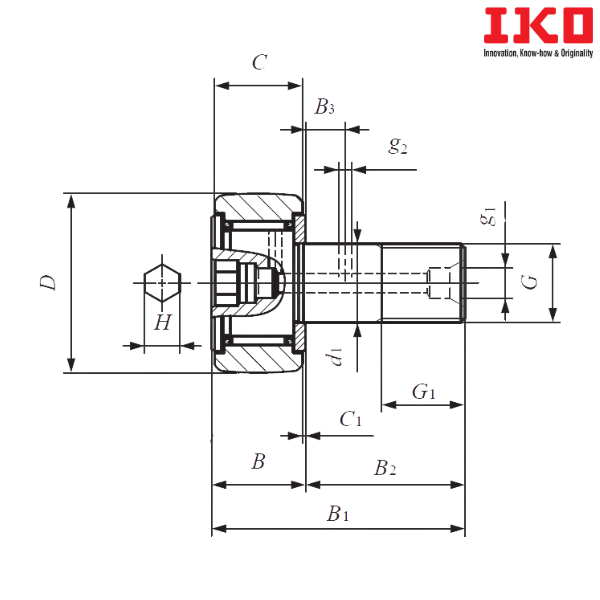

Stud Diameter (d) mm - 20
Weight (kg) - 0.46
Outside Diameter of Outer Diameter (D) mm - 52
Width of Outer Ring (C) mm - 24
Boundary Dimension (d1) mm - 20
G - M20×1.5
Boundary Dimension (G1) mm - 21
Maximum Boundary Dimension (B) mm - 25.6
Maximum Boundary Dimension (B1) mm - 66.1
Boundary Dimension (B2) mm - 40.5
Boundary Dimension (B3) mm - 9
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 8
Boundary Dimension (g2) mm - 4
Boundary Dimension (H) mm - 8

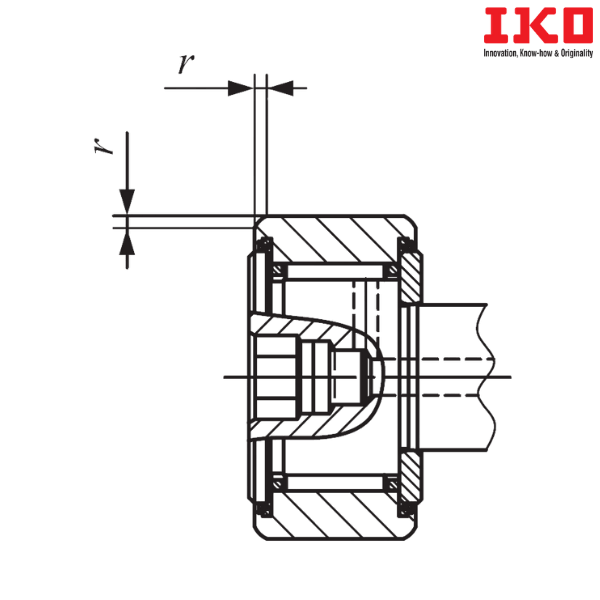

Minimum Allowable Value of Chamfer Dimension (rs min) - 1

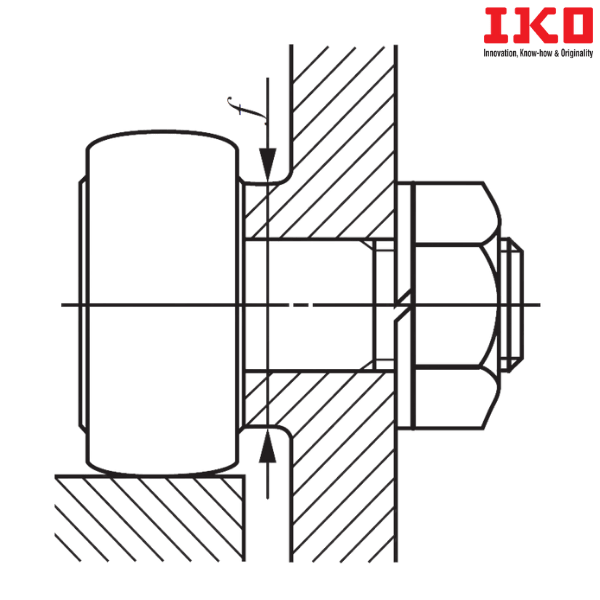

Minimum Mounting Dimension (f min) mm - 34
Maximum Tightening Torque (N-m) - 119
Basic Dynamic Load Rating (C) N - 16500
Basic Static Load Rating (C0) N - 27700
Maximum Allowable Static Load (N) - 27700
Shield Type (with Crowned Outer Ring) - CF 20 FBR
Shield Type (with Cylindrical Outer Ring) - CF 20 FB
Sealed Type (with Crowned Outer Ring) - CF 20 FBUUR

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF....B - Standard Type Cam Follower(Stud Head Hex Hole)
F - Stainless Steel Mode
UU - Sealed Type

** Images are for representation purposes only
