CF 20-1 G IKO

Brand - IKO
Category - Cam Follower G (With Cage/Stud Head Hex Hole)
Item Number - CF 20-1 G IKO
Stud Diameter (mm) - 20
Weight (kg) - 0.4

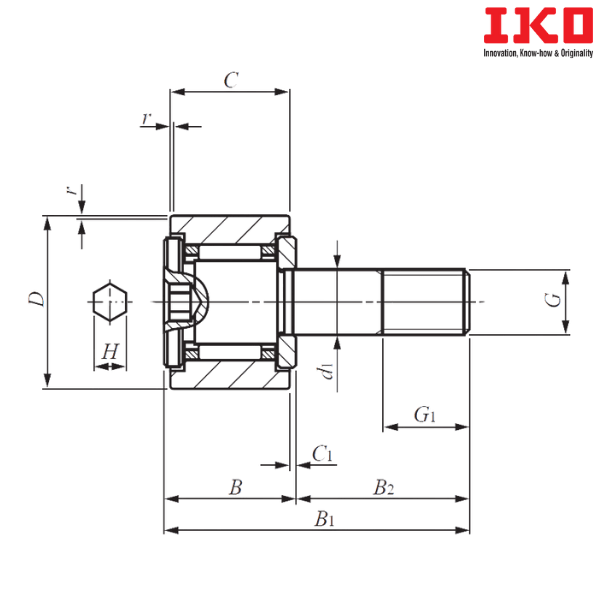

Outside Diameter of Outer Diameter (D) mm - 47
Width of Outer Ring (C) mm - 24
Boundary Dimension (d1) mm - 20
G - M20×1.5
Boundary Dimension (G1) mm - 21
Maximum Boundary Dimension (B) mm - 25.6
Maximum Boundary Dimension (B1) mm - 66.1
Boundary Dimension (B2) mm - 40.5
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (H) mm - 8
Minimum Allowable Value of Chamfer Dimension (rs min) - 1

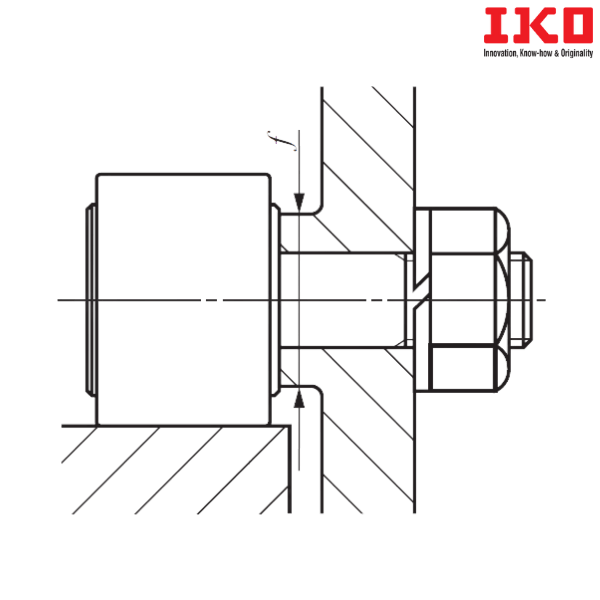

Minimum Mounting Dimension (f min) mm - 34
Maximum Tightening Torque (N-m) - 125
Basic Dynamic Load Rating (C) N - 20700
Basic Static Load Rating (C0) N - 34600
Maximum Allowable Static Load (N) - 34600

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CF...G - Cam Follower G

** Images are for representation purposes only
