CF 18 WBUUR/SG IKO

Brand - IKO
Category - C-Lube Cam Followers (With Cage / Stud Head Hex Hole)
Item Number - CF 18 WBUUR/SG IKO
Stud Diameter (mm) - 18
Weight (kg) - 0.25
Outside Diameter of Outer Diameter (D) mm - 40
Width of Outer Ring (C) mm - 20
Boundary Dimension (d1) mm - 18
G - M18 × 1.5
Boundary Dimension (G1) mm - 19
Maximum Boundary Dimension (B) mm - 21.6 max
Maximum Boundary Dimension (B1) mm - 58.1 max
Boundary Dimension (B2) mm - 36.5
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (H) mm - 8

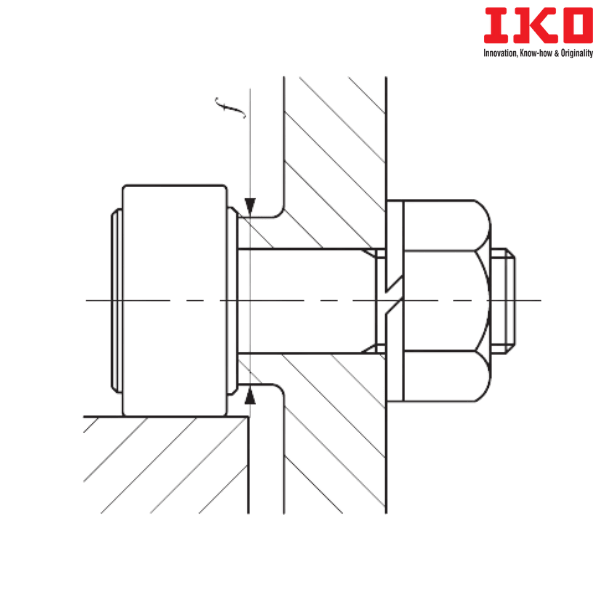

Minimum Mounting Dimension (f min) mm - 29
Maximum Tightening Torque (N-m) - 86.2
Basic Dynamic Load Rating (C) N - 14800
Basic Static Load Rating (C0) N - 25200
Maximum Allowable Static Load (N) - 25200

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF…WB…/SG - C-Lube Cam Followers
R - With Crowned Outer Ring
UU - Sealed Type
