CF 16 VBUUR IKO

Brand - IKO
Category - Standard Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CF 16 VBUUR IKO
Also Known As - CF16VBUUR

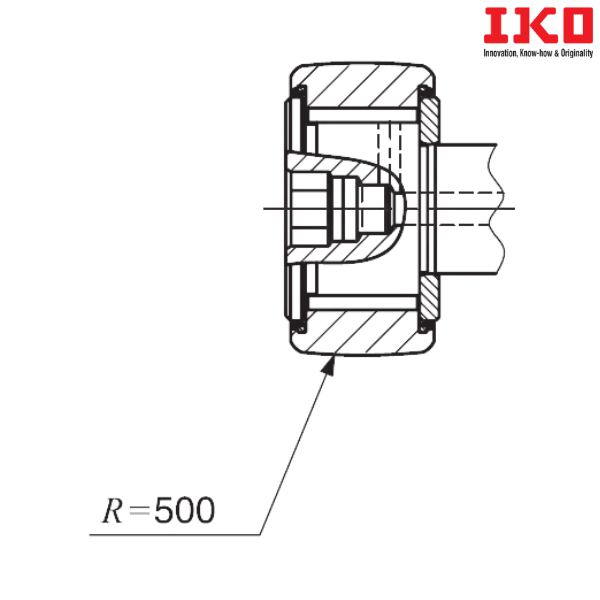

Type - Sealed Type (With Crowned Outer Ring)

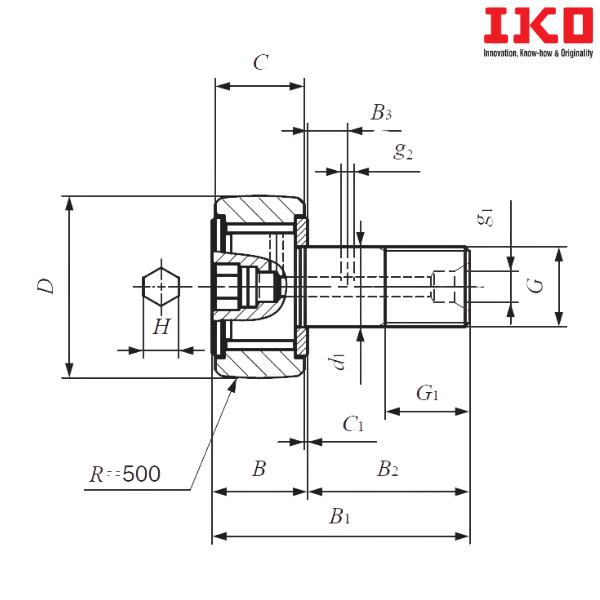

Stud Diameter (d) mm - 16
Weight (kg) - 0.173
Outside Diameter of Outer Diameter (D) mm - 35
Width of Outer Ring (C) mm - 18
Boundary Dimension (d1) mm - 16
G - M16×1.5
Boundary Dimension (G1) mm - 17
Maximum Boundary Dimension (B) mm - 19.6
Maximum Boundary Dimension (B1) mm - 52.1
Boundary Dimension (B2) mm - 32.5
Boundary Dimension (B3) mm - 8
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 4
Boundary Dimension (g2) mm - 3
Boundary Dimension (H) mm - 6
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6

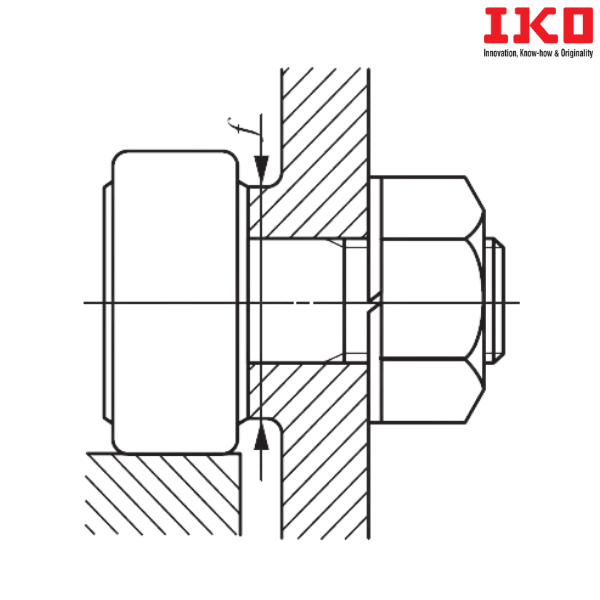

Minimum Mounting Dimension (f min) mm - 26
Maximum Tightening Torque (N-m) - 58.5
Basic Dynamic Load Rating (C) N - 20700
Basic Static Load Rating (C0) N - 37600
Maximum Allowable Static Load (N) - 23200
Shield Type (With Crowned Outer Ring) - CF 16 VBR
Shield Type (With Cylindrical Outer Ring) - CF 16 VB
Sealed Type (With Cylindrical Outer Ring) - CF 16 VBUU

Notes :

Descriptions of Prefixes and Suffixes :
------------------------------------------------------
CF....B - Standard Type Cam Follower(Stud Head Hex Hole)
V - Full Complement Type
R - With Crowned Outer Ring
UU - Sealed Type

** Images are for representation purposes only
