CF 16 G IKO

Brand - IKO
Category - Cam Follower G (With Cage/Stud Head Hex Hole)
Item Number - CF 16 G IKO
Stud Diameter (mm) - 16
Weight (kg) - 0.175

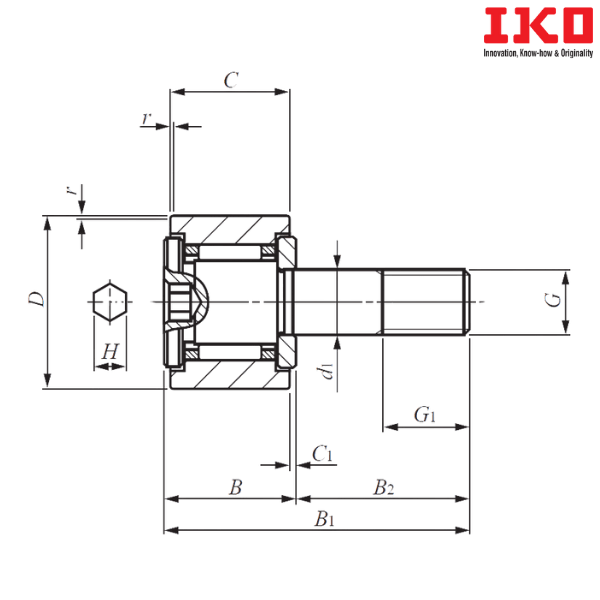

Outside Diameter of Outer Diameter (D) mm - 35
Width of Outer Ring (C) mm - 18
Boundary Dimension (d1) mm - 16
G - M16×1.5
Boundary Dimension (G1) mm - 17
Maximum Boundary Dimension (B) mm - 19.6
Maximum Boundary Dimension (B1) mm - 52.1
Boundary Dimension (B2) mm - 32.5
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (H) mm - 6
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6

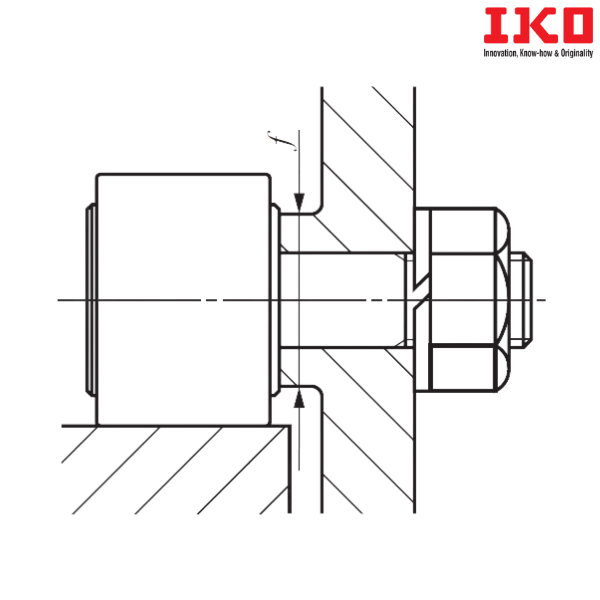

Minimum Mounting Dimension (f min) mm - 26
Maximum Tightening Torque (N-m) - 61.1
Basic Dynamic Load Rating (C) N - 12000
Basic Static Load Rating (C0) N - 18300
Maximum Allowable Static Load (N) - 18300

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CF...G - Cam Follower G

** Images are for representation purposes only
