CF 12 G IKO

Brand - IKO
Category - Cam Follower G (With Cage/Stud Head Hex Hole)
Item Number - CF 12 G IKO

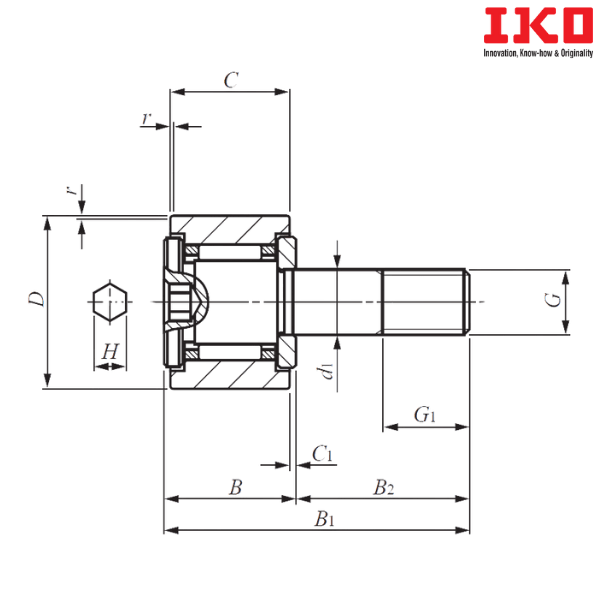

Stud Diameter (mm) - 12
Weight (kg) - 0.095
Outside Diameter of Outer Diameter (D) mm - 30
Width of Outer Ring (C) mm - 14
Boundary Dimension (d1) mm - 12
G - M12×1.5
Boundary Dimension (G1) mm - 13
Maximum Boundary Dimension (B) mm - 15.2
Maximum Boundary Dimension (B1) mm - 40.2
Boundary Dimension (B2) mm - 25
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 6
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6

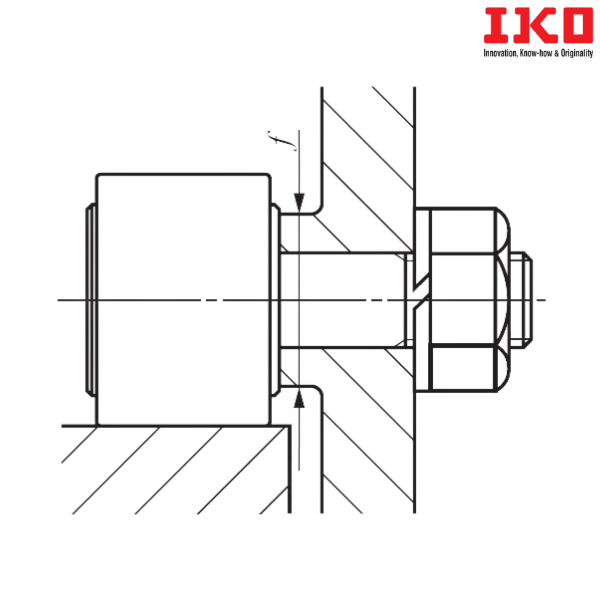

Minimum Mounting Dimension (f min) mm - 21
Maximum Tightening Torque (N-m) - 23.9
Basic Dynamic Load Rating (C) N - 7910
Basic Static Load Rating (C0) N - 9790
Maximum Allowable Static Load (N) - 9790

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CF...G - Cam Follower G

** Images are for representation purposes only
