CF 10 VBR IKO

Brand - IKO
Category - Standard Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CF 10 VBR IKO
Also Known As - CF10VBR
Type - Shield Type (With Crowned Outer Ring)

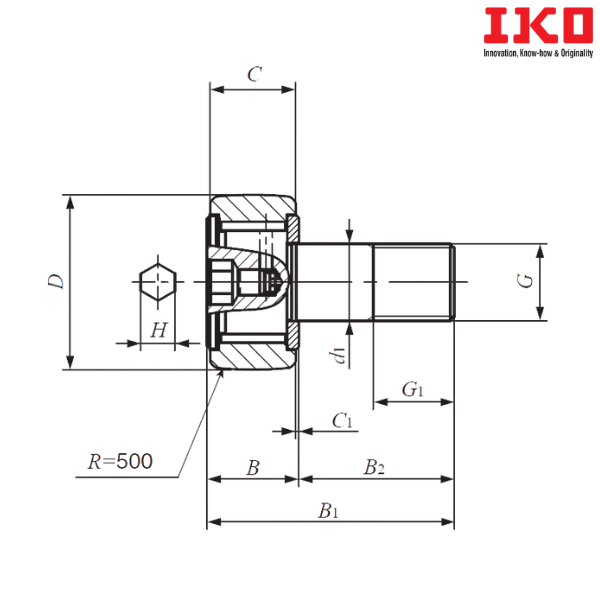

Stud Diameter (d) mm - 10
Weight (kg) - 0.046
Outside Diameter of Outer Diameter (D) mm - 22
Width of Outer Ring (C) mm - 12
Boundary Dimension (d1) mm - 10
G - M10×1.25
Boundary Dimension (G1) mm - 12
Maximum Boundary Dimension (B) mm - 13.2
Maximum Boundary Dimension (B1) mm - 36.2
Boundary Dimension (B2) mm - 23
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 4
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

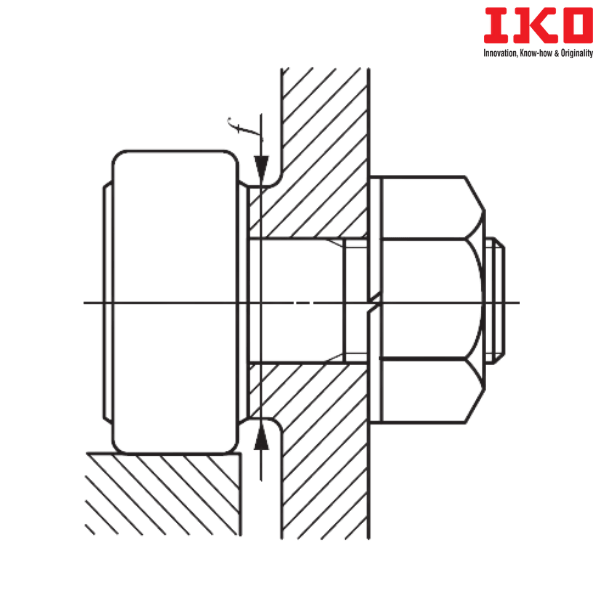

Minimum Mounting Dimension (f min) mm - 16
Maximum Tightening Torque (N-m) - 13.8
Basic Dynamic Load Rating (C) N - 9570
Basic Static Load Rating (C0) N - 14500
Maximum Allowable Static Load (N) - 8650
Shield Type (With Cylindrical Outer Ring) - CF 10 VB
Sealed Type (With Crowned Outer Ring) - CF 10 VBUUR
Sealed Type (With Cylindrical Outer Ring) - CF 10 VBUU

Notes :

Descriptions of Prefixes and Suffixes :
------------------------------------------------------
CF....B - Standard Type Cam Follower(Stud Head Hex Hole)
V - Full Complement Type
R - With Crowned Outer Ring

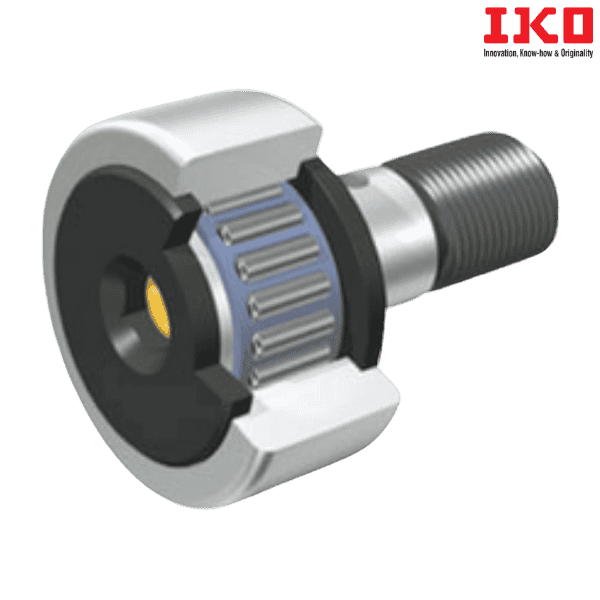

** Images are for representation purposes only
