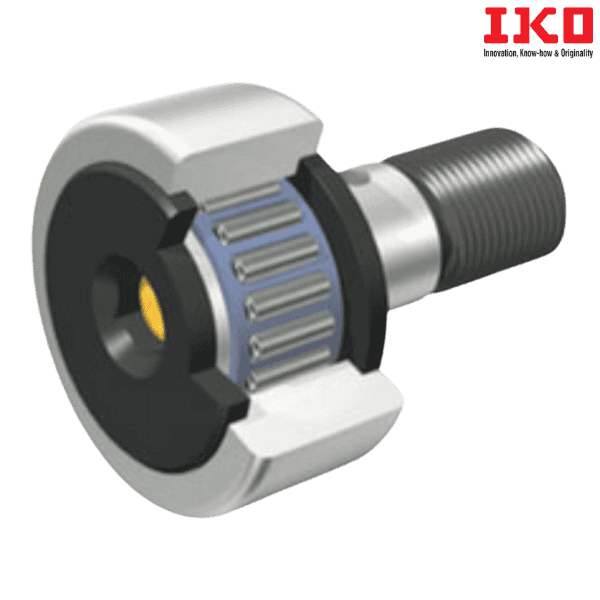

CF 10-1 WBR IKO

Brand - IKO
Category - Thrust Disk Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CF 10-1 WBR IKO
Also Known As - CF10-1WBR
Type - Shield Type
Stud Diameter (mm) - 10
Weight (kg) - 0.06

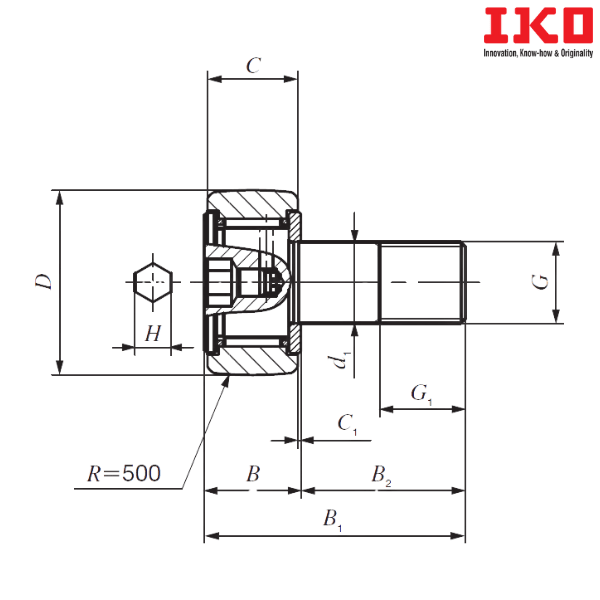

Outside Diameter of Outer Diameter (D) mm - 26
Width of Outer Ring (C) mm - 12
Boundary Dimension (d1) mm - 10
G - M10 × 1.25
Boundary Dimension (G1) mm - 12
Maximum Boundary Dimension (B) mm - 13.2
Boundary Dimension (B1) mm - 36.2
Boundary Dimension (B2) mm - 23
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 4

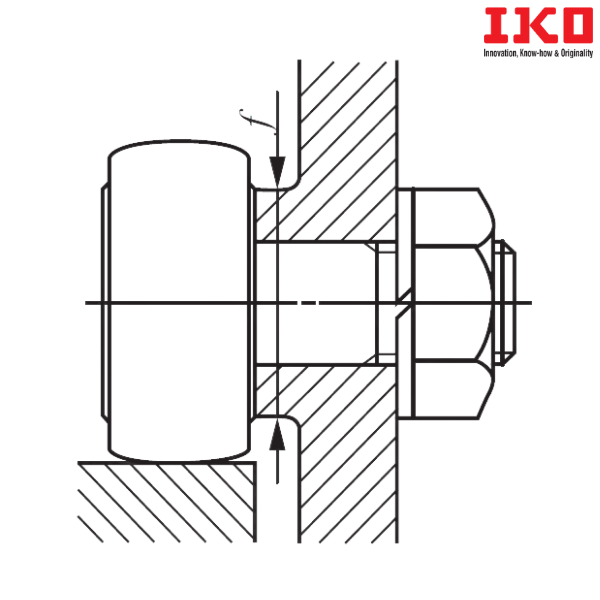

Minimum Mounting Dimension (f min) mm - 16
Maximum Tightening Torque (N-m) - 13.8
Basic Dynamic Load Rating (C) N - 5430
Basic Static Load Rating (C0) N - 6890
Maximum Allowable Static Load (N) - 6890
Sealed Type - CF 10-1 WBUUR

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CF...WB - Thrust Disk Type Cam Followers
R - With Crowned Outer Ring

** Images are for representation purposes only
