Description
Brand - ZEN
Item Number - CCYR-1 3/4-S ZEN
Category - Yoke Type Track Rollers (CYR)
Outer Diameter (RD) inch - 1.75
W (inch) - 1
B (inch) - 0.5
W1 (inch) - 1.0625
E (inch) - 1.25
H (inch) - 0.09375
Static Load Rating (C) N - 15840
Dynamic Load Rating (C) lbs - 6385
Approximate Weight (kg) - 0.29
Alternative Part Number in TORRINGTON - YCRSC-28
Alternative Part Number in RBC - CY-56-L
Alternative Part Number in SMITH - YR-1 3/4XC

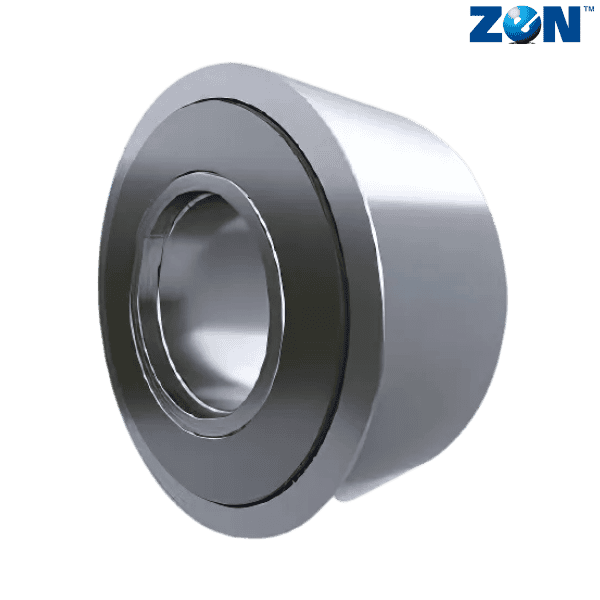

** Images are for representation purposes only
