Description
Brand - CARTER
Item Number - CCNB-36 CARTER
Category - Standard Crowned Slotted Unsealed Cam Follower
Imperial :

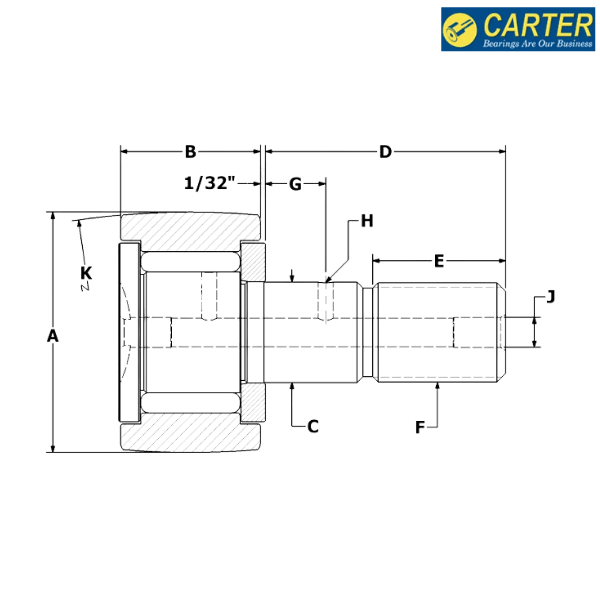

Roller Outer Diameter (A) inch - 1.125
Roller Width (B) inch - 0.625
Crown Radius (K) inch - 12
Stud Diameter (C) inch - 0.4375
Stud Length (D) inch - 1
M.E.T. (E) inch - 0.5
Thread Class 2A (F) inch - 7/16-20
Thread Diameter (inch) - 0.4375
Number of Threads per inch - 20
Oil Hole Center (G) inch - 0.25
Oil Hole Diameter (H) inch - 0.09375
Lube Fitting Size (J) inch - 0.1875
Minimum Boss Diameter (inch) - 0.640625
Mounting Bore (inch) - 0.438
Torque (in-lb) * - 125
Maximum Static Capacity (lbf) - 3060
Basic Dynamic Rating (lbf) - 2225
Limiting Speed (rpm) - 3400
Metric :
Roller Outer Diameter (A) mm - 28.575
Roller Width (B) mm - 15.875
Crown Radius (K) mm - 304.8
Stud Diameter (C) mm - 11.1125
Stud Length (D) mm - 25.4
M.E.T. (E) mm - 12.7
Oil Hole Center (G) mm - 6.35
Oil Hole Diameter (H) mm - 2.38125
Lube Fitting Size (J) mm - 4.7625
Minimum Boss Diameter (mm) - 16.271875
Mounting Bore (mm) - 11.1252
Maximum Static Capacity (N) - 13611.5532
Basic Dynamic Rating (N) - 9897.2895
Notes :
*Clamping torque is based on lubricated threads, if threads are dry, double the value listed

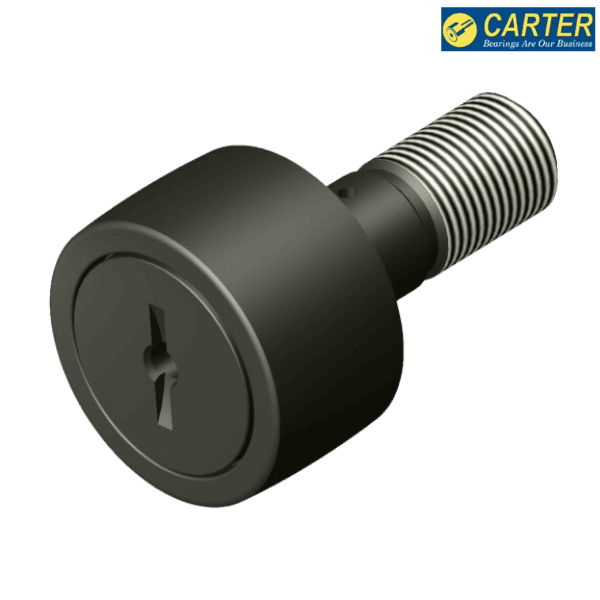

**Images are for representation purposes only
