Description
Brand - CARTER
Item Number - CCNB-288-SB CARTER
Category - Standard Crowned Hexed Sealed Cam Follower

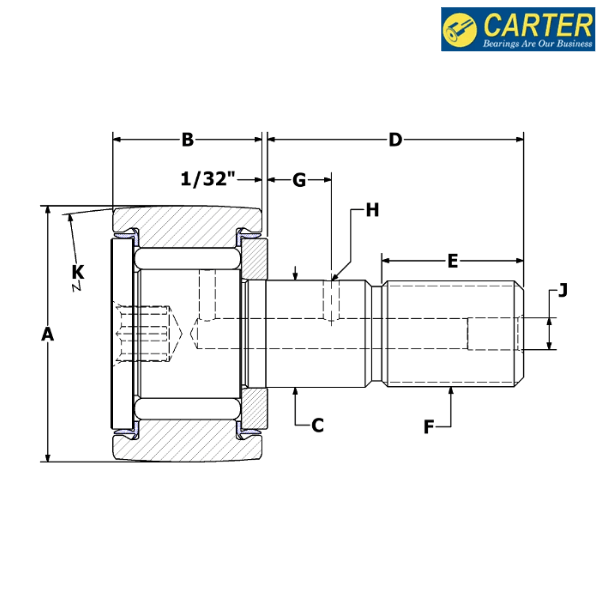

Imperial :
Roller Outer Diameter (A) inch - 9
Roller Width (B) inch - 4.75
Crown Radius (K) inch - 40
Stud Diameter (C) inch - 3.75
Stud Length (D) inch - 9.5
M.E.T. (E) inch - 4.75
Thread Class 2A (F) inch - 3 1/2-4
Thread Diameter (inch) - 3.5
Number of Threads per inch - 4
Lube Fitting Size, N.P.T. (J) inch ** - 0.25 N.P.T.
Hex Size (X) inch - 1.25
Minimum Boss Diameter (inch) - 5.4375
Mounting Bore (inch) - 3.75
Torque (in-lb) * - 2500
Maximum Static Capacity (lbf) - 183430
Basic Dynamic Rating (lbf) - 113260
Limiting Speed (rpm) - 300
Metric :
Roller Outer Diameter (A) mm - 228.6
Roller Width (B) mm - 120.65
Crown Radius (K) mm - 1016
Stud Diameter (C) mm - 95.25
Stud Length (D) mm - 241.3
M.E.T. (E) mm - 120.65
Hex Size (X) mm - 31.75
Minimum Boss Diameter (mm) - 138.1125
Mounting Bore (mm) - 95.25
Maximum Static Capacity (N) - 815936.9946
Basic Dynamic Rating (N) - 503805.3972
Notes :
*Clamping torque is based on lubricated threads, if threads are dry, double the value listed
**N.P.T. - a National Pipe Tapered (NPT) fitting with a nominal outside diameter (OD) of 0.533 inches

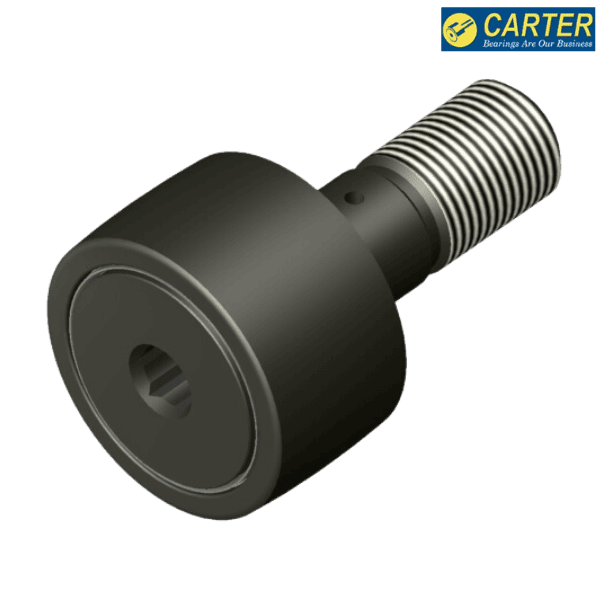

***Images are for representation purposes only
