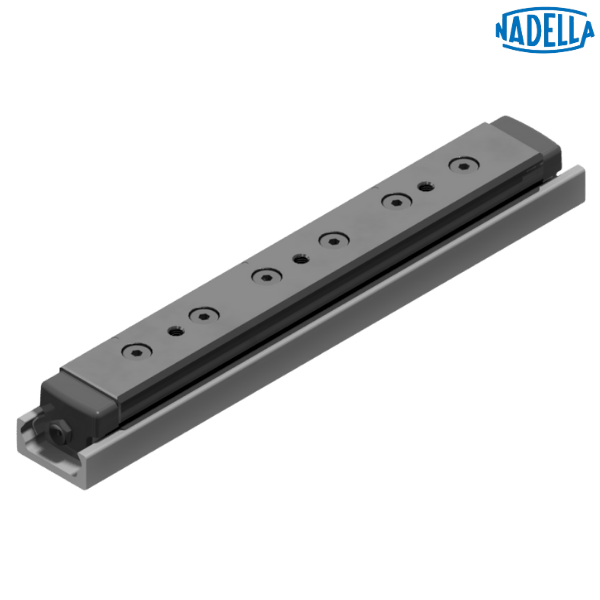

C6 RT 43 258 B NADELLA

Brand - NADELLA
Item Number - C6 RT 43 258 B NADELLA
Category - Steel Carriages with 6 Rollers for NT Rail

Principal Dimensions & Load Ratings (Metric):
Dimension (H) - 37 mm
Dimension (H1) - 22.5 mm
Dimension (H2) - 14.5 mm
Dimension (k) - 0.5 mm
Dimension (B) - 40 mm
Dimension (b) - 20 mm
Dimension (L) - 258 mm
Dimension (L1) - 285 mm
Dimension (lx) - 205 mm
Dimension (ly) - 0.9 mm
Dimension (e) - 80 mm
Dimension (G) - M8
Weight - 1.215 kg
Guide - NT 43

Description of Prefix:
C6 RT - Carriages with body in brunished steel 6 RT and RTL guide rollers for NT guide of the auto-aligning C-Line

Other salient points to be noted:

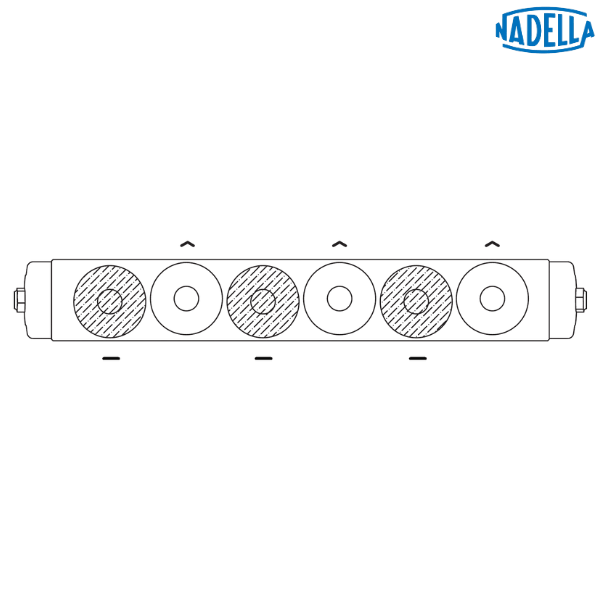

• The markings show the contact points with the running surface of the rails
• Dimension also apply to C6 RTL and C6 RTY

♦ ♦ Images are for representation purposes only
