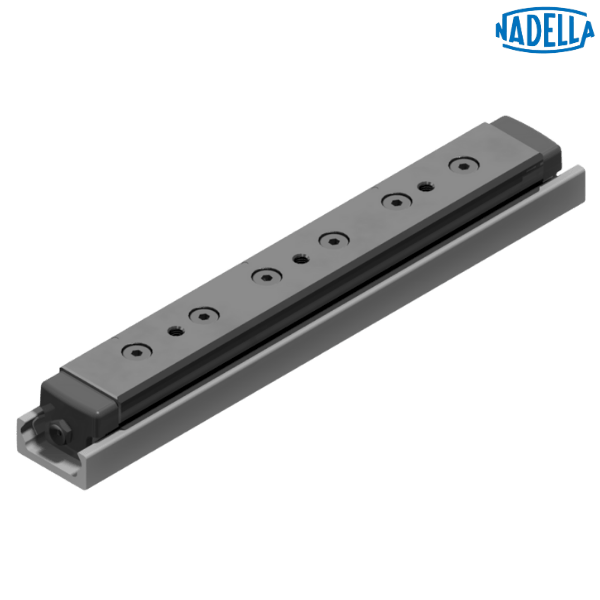

C6 RT 28 170 A NADELLA

Brand - NADELLA
Item Number - C6 RT 28 170 A NADELLA
Category - Steel Carriages with 6 Rollers for NT Rail

Principal Dimensions & Load Ratings (Metric):
Dimension (H) - 23.9 mm
Dimension (H1) - 15.4 mm
Dimension (H2) - 9.7 mm
Dimension (k) - 0.45 mm
Dimension (B) - 24.9 mm
Dimension (b) - 12.45 mm
Dimension (L) - 170 mm
Dimension (L1) - 195 mm
Dimension (lx) - 130 mm
Dimension (ly) - 0.9 mm
Dimension (e) - 50 mm
Dimension (G) - M5
Weight - 0.332 kg
Guide - NT 28

Description of Prefix:
C6 RT - Carriages with body in brunished steel 6 RT and RTL guide rollers for NT guide of the auto-aligning C-Line

Other salient points to be noted:
• The markings show the contact points with the running surface of the rails
• Dimension also apply to C6 RTL and C6 RTY

♦ ♦ Images are for representation purposes only
