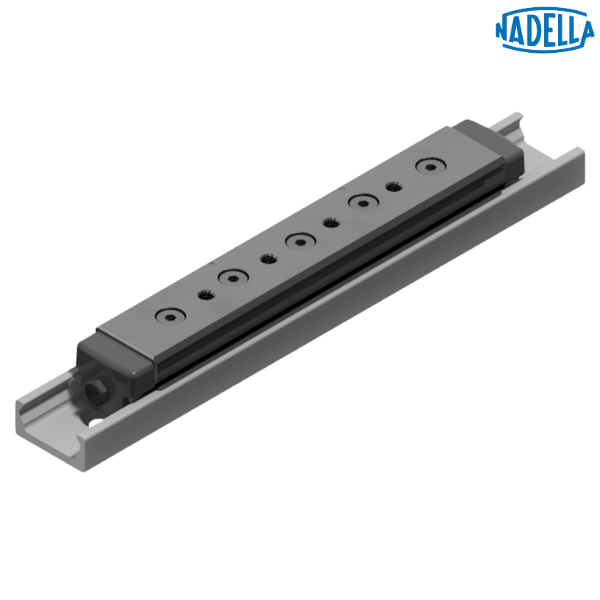

C5 RT 43 215 NADELLA

Brand - NADELLA
Item Number - C5 RT 43 215 NADELLA
Category - Steel Carriages with 5 Rollers for NT Rail

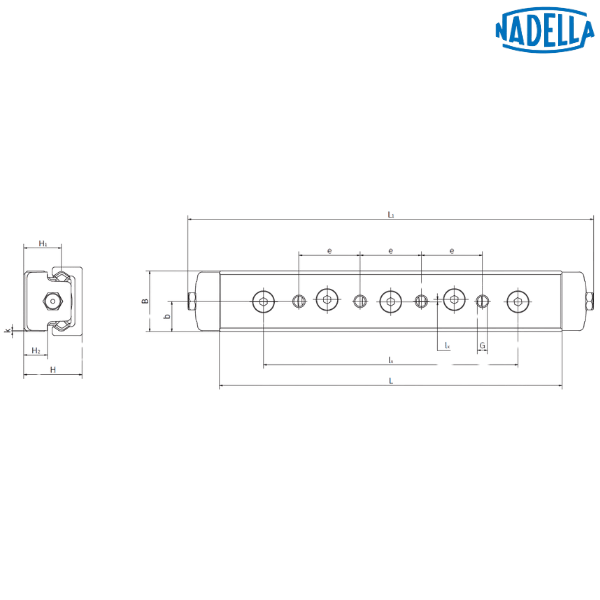

Principal Dimensions & Load Ratings (Metric):
Dimension (H) - 37 mm
Dimension (H1) - 22.5 mm
Dimension (H2) - 14.5 mm
Dimension (k) - 0.5 mm
Dimension (B) - 40 mm
Dimension (b) - 20 mm
Dimension (L) - 215 mm
Dimension (L1) - 242.2 mm
Dimension (lx) - 164 mm
Dimension (ly) - 0.9 mm
Dimension (e) - 40 mm
Dimension (G) - M8
Weight - 0.66 kg
Guide - NT 43

Description of PRefix:
C5 RT - Carriages with body in brunished steel 5 RT and RTL guide rollers for NT guide of the auto-aligning C-Line

Other salient points to be noted:

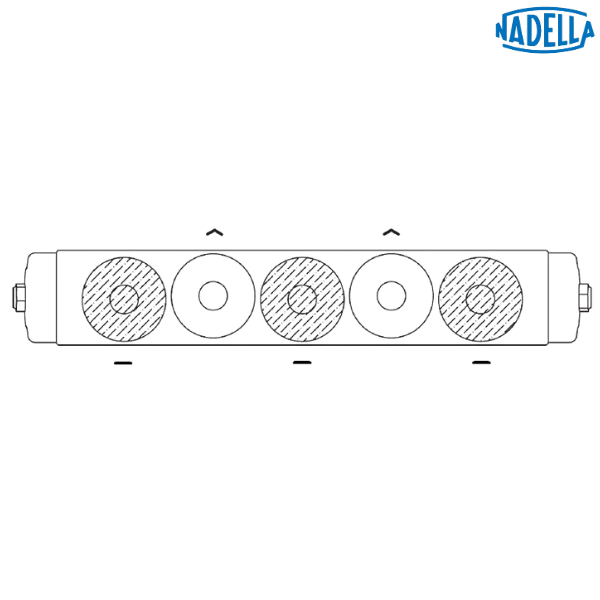

• The markings show the contact points with the running surface of the rails
• Dimension also apply to C5 RTL and C5 RTY

♦ ♦ Images are for representation purposes only
