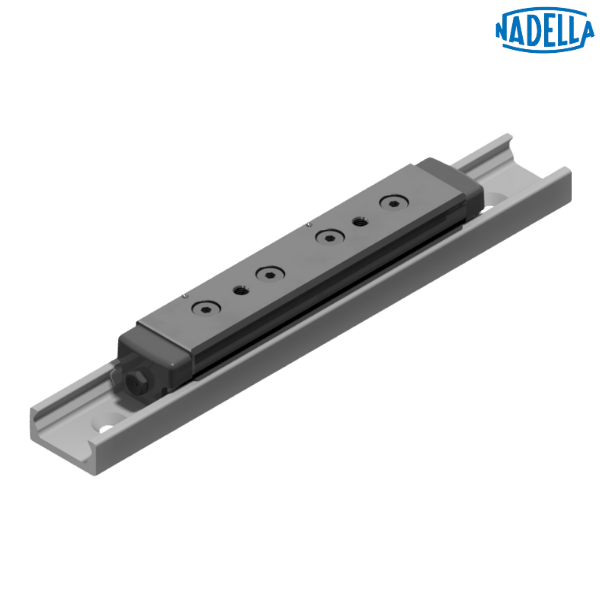

C4 RT 43 175 A NADELLA

Brand - NADELLA
Item Number - C4 RT 43 175 A NADELLA
Category - Steel Carriages with 4 Rollers for NT Rail

Principal Dimensions & Load Ratings (Metric):
Dimension (H) - 37 mm
Dimension (H1) - 22.5 mm
Dimension (H2) - 14.5 mm
Dimension (k) - 0.5 mm
Dimension (B) - 40 mm
Dimension (b) - 20 mm
Dimension (L) - 175 mm
Dimension (L1) - 202 mm
Dimension (lx) - 123 mm
Dimension (ly) - 0.9 mm
Dimension (e) - 80 mm
Dimension (G) - M8
Weight - 0.832 kg
Guide - NT 43

Description of PRefix:
C4 RT - Carriages with body in brunished steel 4 RT and RTL guide rollers for NT guide of the auto-aligning C-Line

Other salient points to be noted:

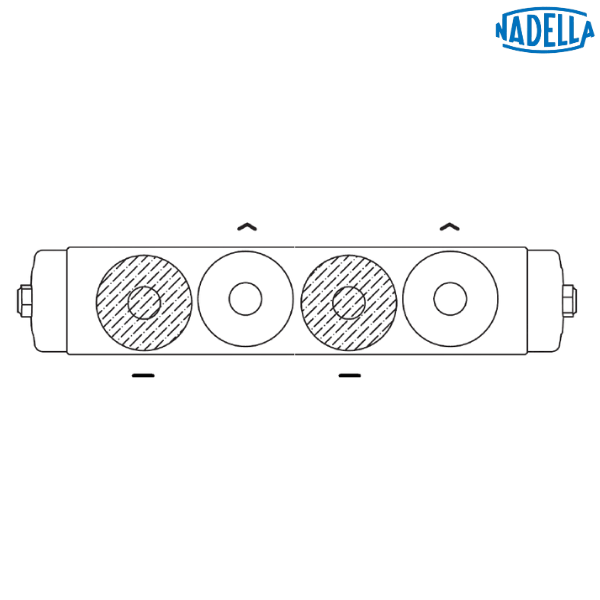

• The markings show the contact points with the running surface of the rails
• Dimension also apply to C4 RTL and C4 RTY

♦ ♦ Images are for representation purposes only
