C4 RCL 35 10 152 NADELLA

Brand - NADELLA
Item Number - C4 RCL 35 10 152 NADELLA
Category - Carriage with Body in Anodised Aluminium with 4 Guide Rollers

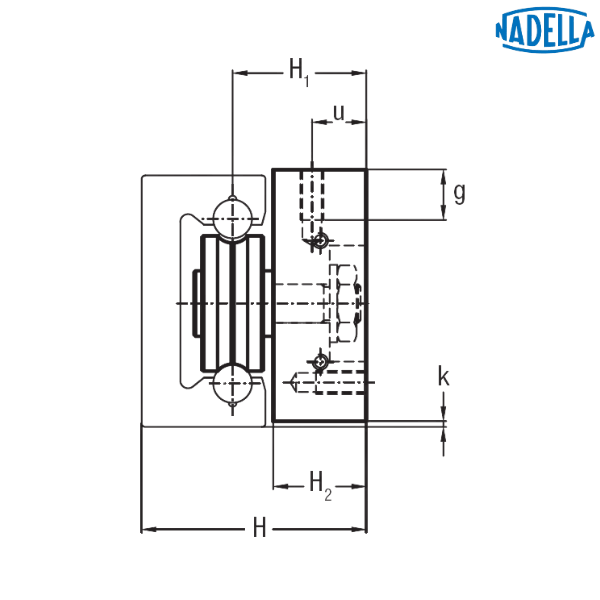

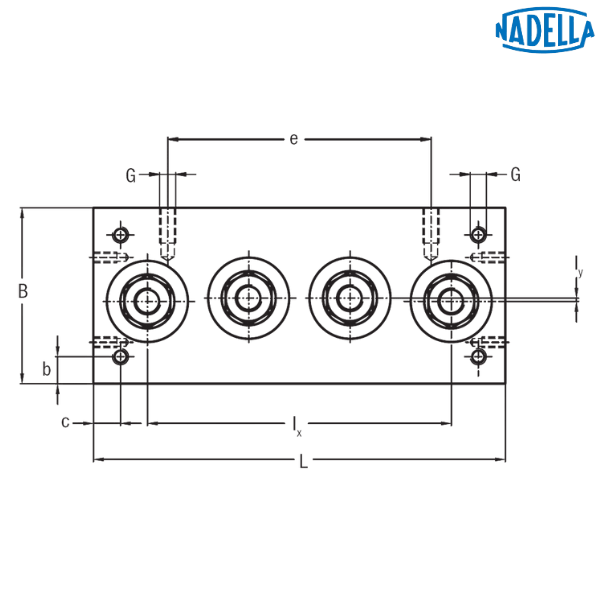

Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 152 mm
Dimension (B) - 65 mm
Dimension (Ix) - 112.5 mm
Dimension (Iy) - 1.2 mm
Dimension (H) - 58 mm
Dimension (H1) - 34.5 mm
Dimension (H2) - 24 mm
Dimension (G) - M6
Dimension (g) - 10 mm
Dimension (b) - 10 mm
Dimension (c) - 10 mm
Dimension (u) - 14 mm
Dimension (e) - 90 mm
Dimension (k) - 1.5 mm
Weight - 1 kg
Recommended Pairings - LM 65

Description of Prefix:
C4 RCL - Carriage with body in anodised aluminium with 4 guide rollers type RCL for U-Line system

Other salient points to be noted:
• Dimensions in the table are correct also for carriages C4 RAL and C4 RYL
• Available with stainless steel guide rollers (suffix NX)

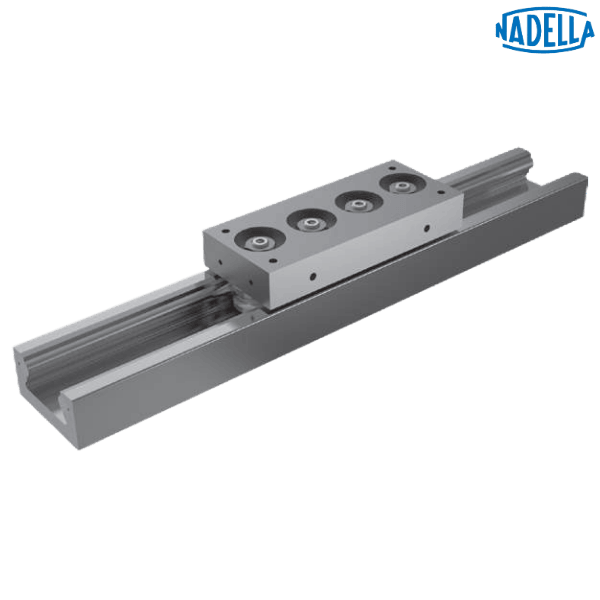

♦ ♦ Images are for representation purposes only
