C4 RCL 24 06 114 NADELLA

Brand - NADELLA
Item Number - C4 RCL 24 06 114 NADELLA
Category - Carriage with Body in Anodised Aluminium with 4 Guide Rollers

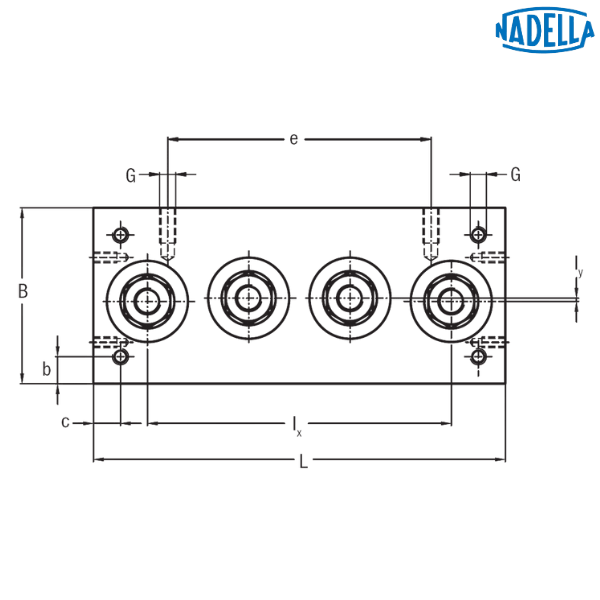

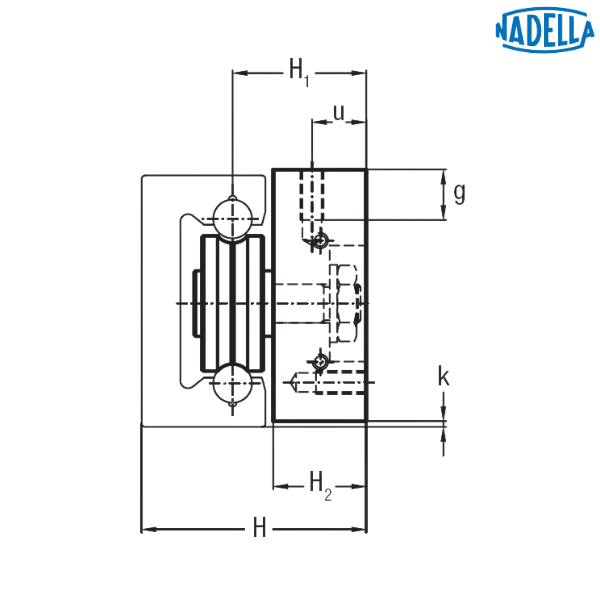

Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 114 mm
Dimension (B) - 42 mm
Dimension (Ix) - 87 mm
Dimension (Iy) - 1 mm
Dimension (H) - 35.7 mm
Dimension (H1) - 21.7 mm
Dimension (H2) - 14 mm
Dimension (G) - M5
Dimension (g) - 8 mm
Dimension (b) - 6 mm
Dimension (c) - 6 mm
Dimension (u) - 7 mm
Dimension (e) - 60 mm
Dimension (k) - 1 mm
Weight - 0.25 kg
Recommended Pairings - LM 40

Description of Prefix:
C4 RCL - Carriage with body in anodised aluminium with 4 guide rollers type RCL for U-Line system

Other salient points to be noted:
• Dimensions in the table are correct also for carriages C4 RAL and C4 RYL
• Available with stainless steel guide rollers (suffix NX)

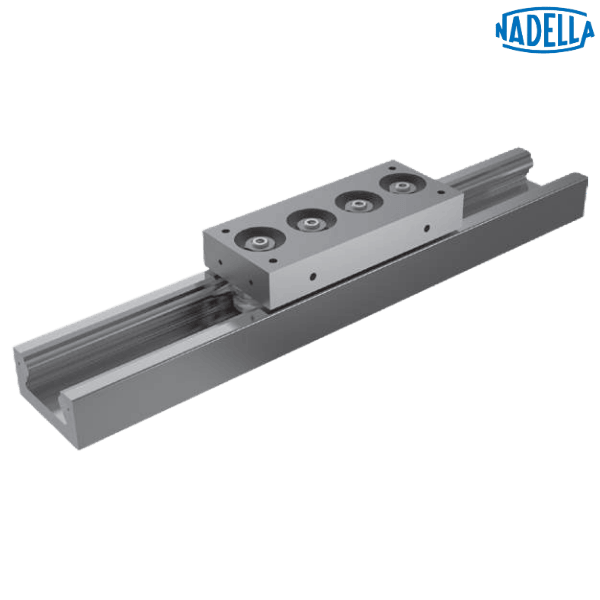

♦ ♦ Images are for representation purposes only
