C4 RCL 17 06 085 NADELLA

Brand - NADELLA
Item Number - C4 RCL 17 06 085 NADELLA

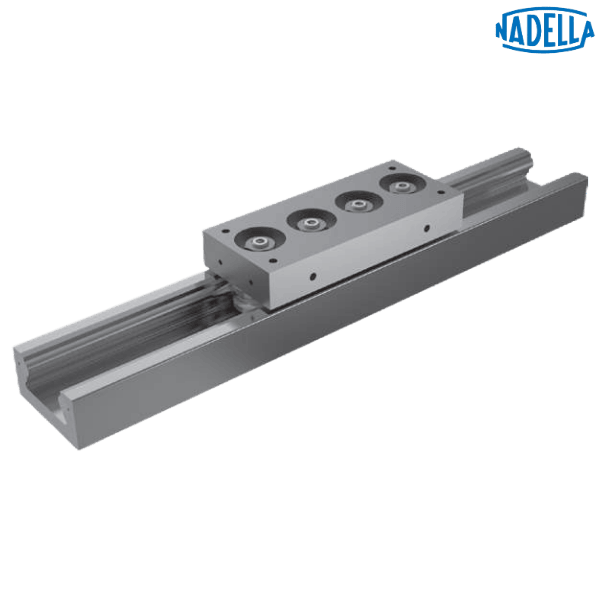

Category - Carriage with Body in Anodised Aluminium with 4 Guide Rollers

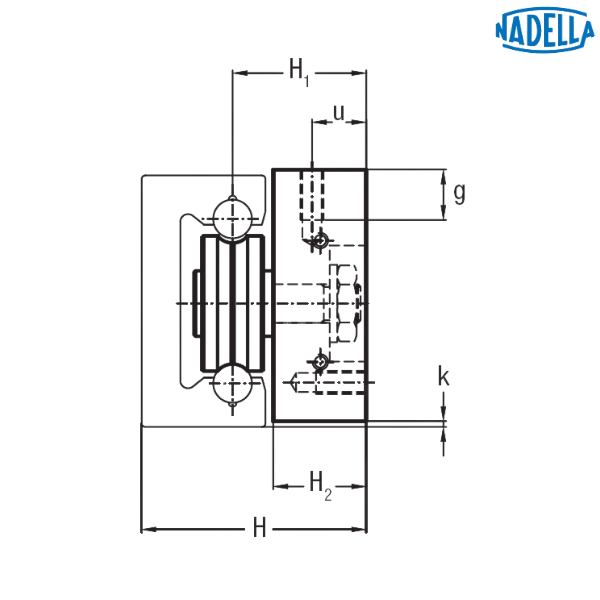

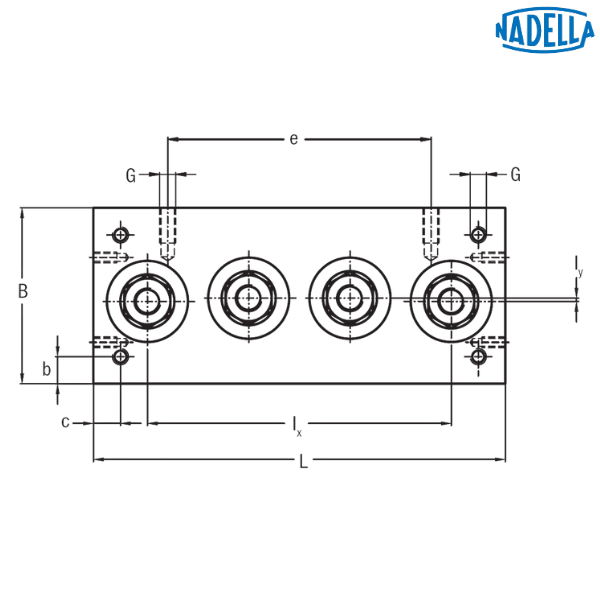

Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 85 mm
Dimension (B) - 32 mm
Dimension (Ix) - 60 mm
Dimension (Iy) - 0.5 mm
Dimension (H) - 27.5 mm
Dimension (H1) - 17 mm
Dimension (H2) - 11 mm
Dimension (G) - M4
Dimension (g) - 6 mm
Dimension (b) - 4 mm
Dimension (c) - 6 mm
Dimension (u) - 5.5 mm
Dimension (e) - 44 mm
Dimension (k) - 0.5 mm
Weight - 0.15 kg
Recommended Pairings - LM 30

Description of Prefix:
C4 RCL - Carriage with body in anodised aluminium with 4 guide rollers type RCL for U-Line system

Other salient points to be noted:
• Dimensions in the table are correct also for carriages C4 RAL and C4 RYL
• Available with stainless steel guide rollers (suffix NX)
