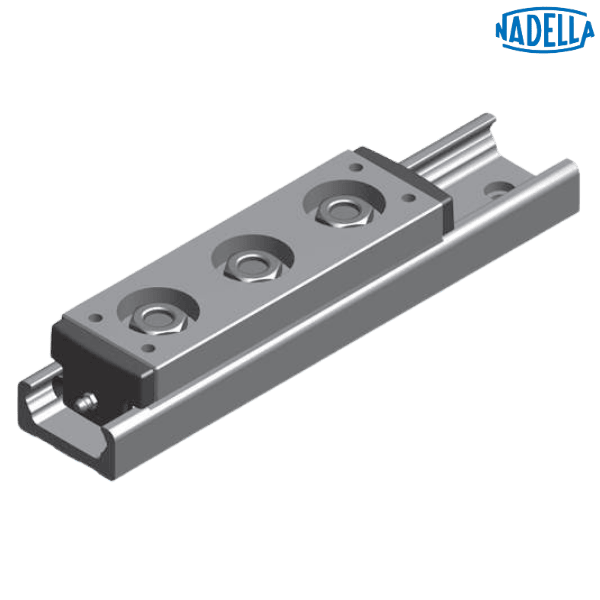

Brand - NADELLA
Item Number - C3 RCS 63 226 NADELLA
Category - Anodised Aluminium Carriages with 3 Rollers for LS Rail

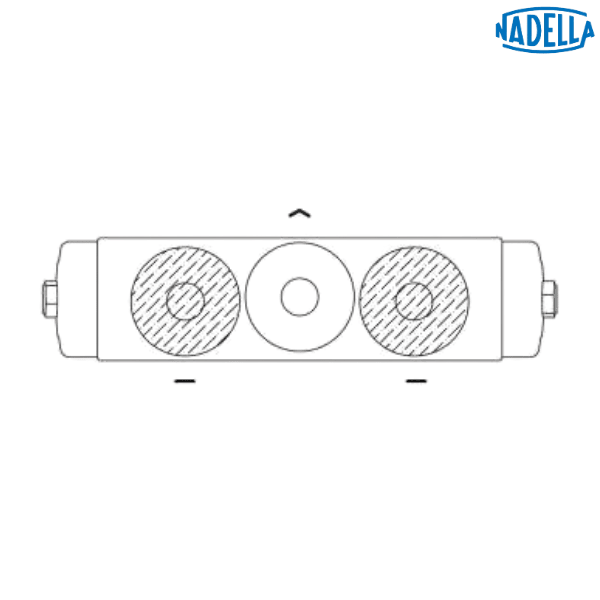

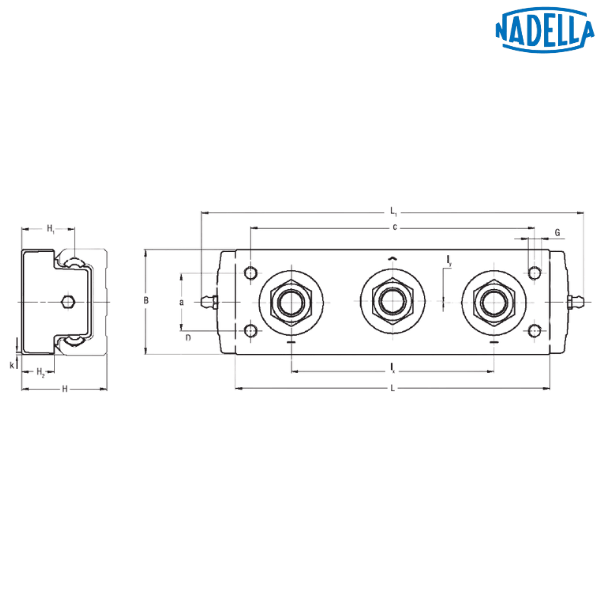

Principal Dimensions & Load Ratings (Metric):
Dimension (H) - 50.5 mm
Dimension (H1) - 31.25 mm
Dimension (H2) - 18.5 mm
Dimension (k) - 1.5 mm
Dimension (B) - 60 mm
Dimension (b) - 13 mm
Dimension (L) - 186 mm
Dimension (L1) - 226 mm
Dimension (lx) - 120 mm
Dimension (ly) - 1 mm
Dimension (c) - 168
Dimension (G) - M8 (4x)
Weight - 1.2 kg
Guide - LS 63
Description of Prefix:
C3 RCS - Carriages with body in brunished steel with 3 guide rollers type RCS for auto-aligning system C-Line
Other salient points to be noted:
• The markings show the contact points with the running surface of the rails
• Dimension also apply to C3 RAS and C3 RSY
