C 30 NADELLA

Brand - NADELLA
Item Number - C 30* NADELLA

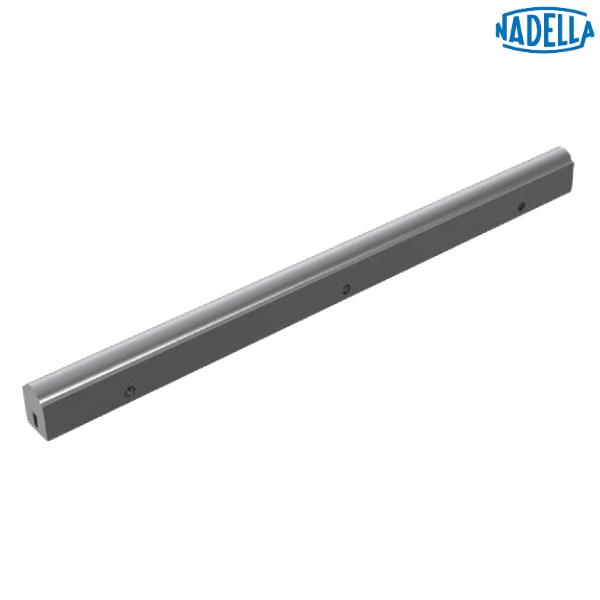

Category - Guide Rail composed by an Aluminium Body and One Shaft in Steel, with a Single Raceway

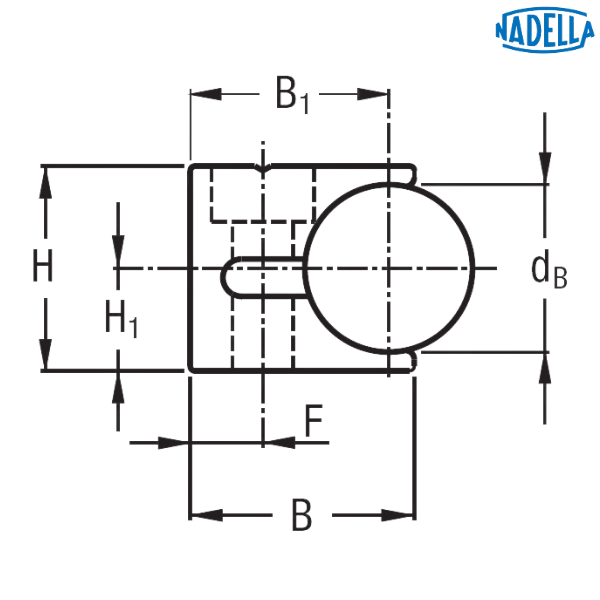

Principal Dimensions & Load Ratings (Metric):
Dimension (dB) - 30 mm
Dimension (B) - 36 mm
Dimension (B1) - 32.5 mm
Dimension (H) - 36 mm
Dimension (H1) - 19 mm
Dimension (D) - 9 mm
Dimension (G) - 15 mm
Dimension (g) - 8.3 mm
Dimension (F) - 11.5 mm
Dimension (l) - 180 mm
Dimension (l1) - 60 mm
Moments of Inertia** (Jx) - 11.1 cm⁴
Moments of Inertia** (Jy) - 5.6 cm⁴
Weight - 7.6 kg/m

Description of Prefix:
C - Rail composed by an aluminium body and one shaft in steel, with a single raceway for Base-Line system

Other salient points to be noted:
* Available with stainless steel shafts
** Inertia value based on equivalent aluminium yield 70000 N/mm²

• Maximum length in single element L = 6000 mm
• Longer rails are supplied in sections with ground butt joints and, on request, with pin connection

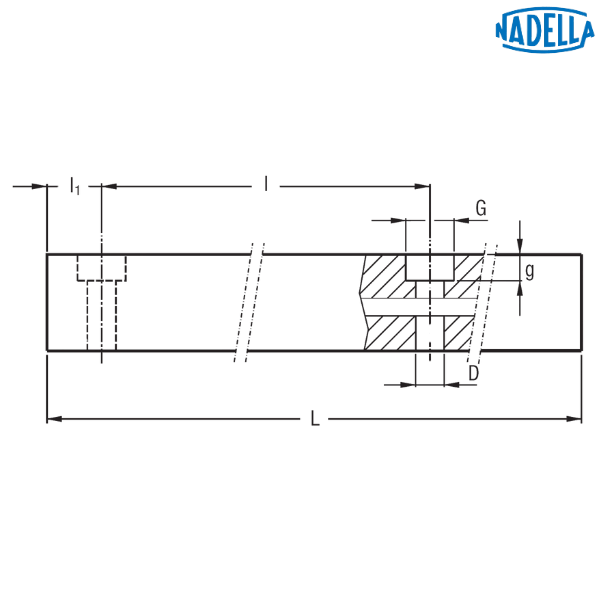

Hole Layout:
• For Holes according to catalogue, Suffix will be SB, e.g. C 10 2060 SB
• For Finishes to drawing, Suffix will be NZ, e.g. C 10 2060 NZ
• For Without holes, Suffix will be NF, e.g. C 10 2060 NF

Optional Features:
• Ground one end: side of the first hole (1R), side of the last hole (2R)
• Ground both ends (RR)
• Stainless steel shafts (NX)
• Chromium plated shafts (CH)
• Pin based shaft connection (G)

Standard Designation Examples:
C 10 650
C 10 2010
C 10 3450
C 10 4600
C 10 5630

♦ ♦ Images are for representation purposes only
