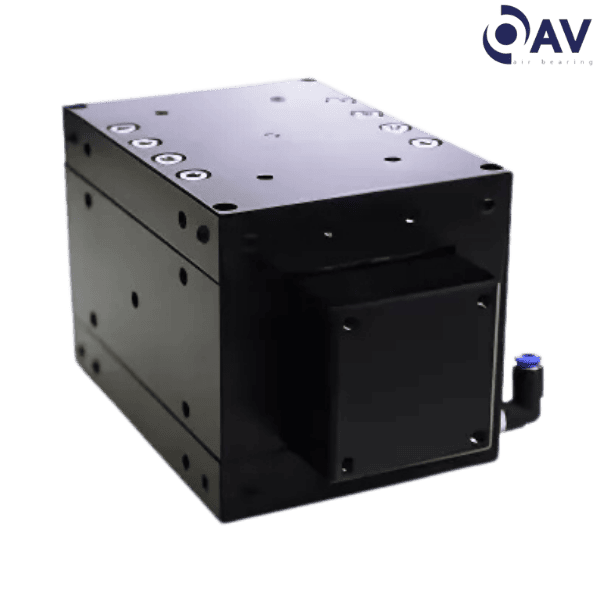

Description
Brand - OAV
Item Number - BX5050 OAV
Category - Box-Series Rail Guides
Imperial :
Flatness (inch) - 0.00002
Carriage Weight (lb) - 3.5
Total Weight (lb) - 12.6 (100 mm travel)
Z direction Load (lb) - 356
Y direction Load (lb) - 356
Metric :
Flatness (mm) - 0.0005
Local Straightness as per 25 mm travel (µm) - 0.25
Maximum Error as per 1000 mm travel (µm) - 2

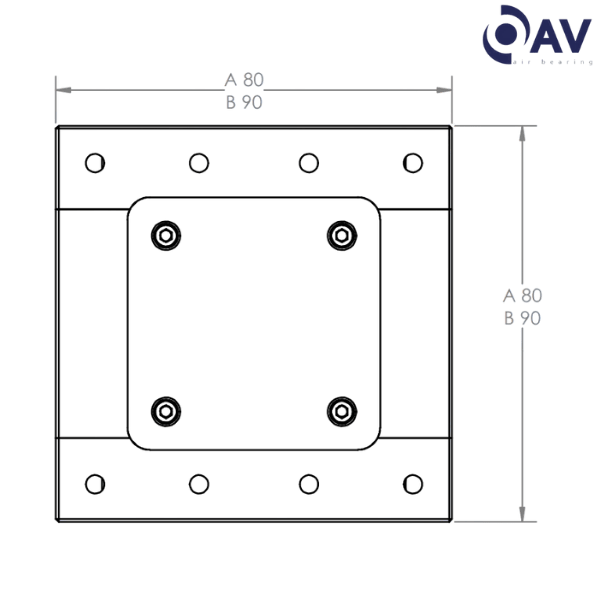

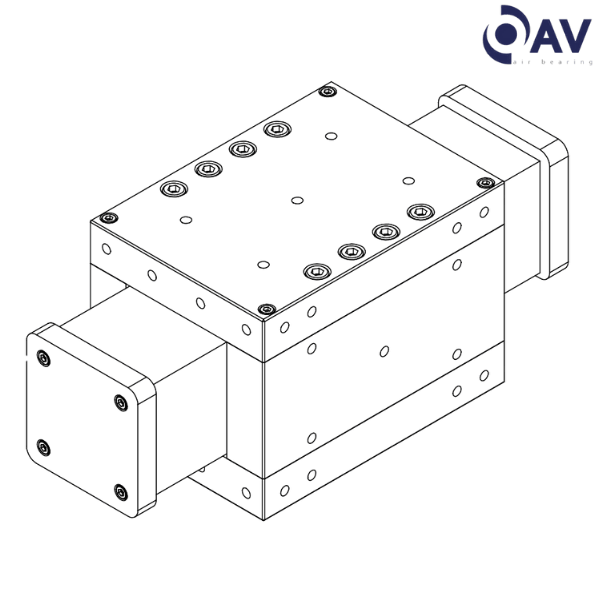

Carriage Size (mm) - 90 x 90
Carriage Length (mm) - 125
Travel (mm) - 50/100/200/300 or Custom Travel
Guidebar Length (mm) - Custom
Assembly Height (mm) - 90
Carriage Weight (kg) - 1.6
Total Weight (kg) - 5.76 (100 mm travel)
Z direction Load (N) - 1583
Y direction Load (N) - 1583
Air Flow (NLPM) - 5.1
Pitch (N-m) - 160
Roll (N-m) - 144
Yaw (N-m) - 160
Y Stiffness (N/μ) - 353
Z Stiffness (N/μ) - 353
Guidebar Size (mm) - 50 x 50
** Images are for representation purposes only
