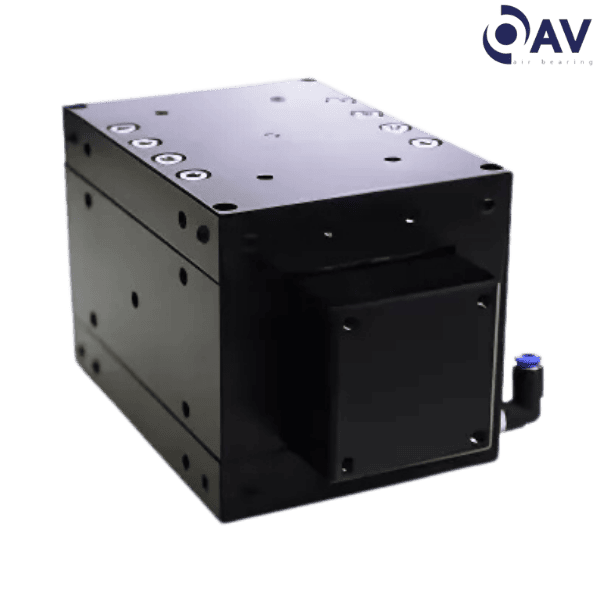

Description
Brand - OAV
Item Number - BX4040 OAV
Category - Box-Series Rail Guides
Imperial :
Flatness (inch) - 0.00002
Carriage Weight (lb) - 1.89
Total Weight (lb) - 6.1 (100 mm travel)
Z direction Load (lb) - 124
Y direction Load (lb) - 124
Metric :
Flatness (mm) - 0.0005
Local Straightness as per 25 mm travel (µm) - 0.25
Maximum Error as per 1000 mm travel (µm) - 2

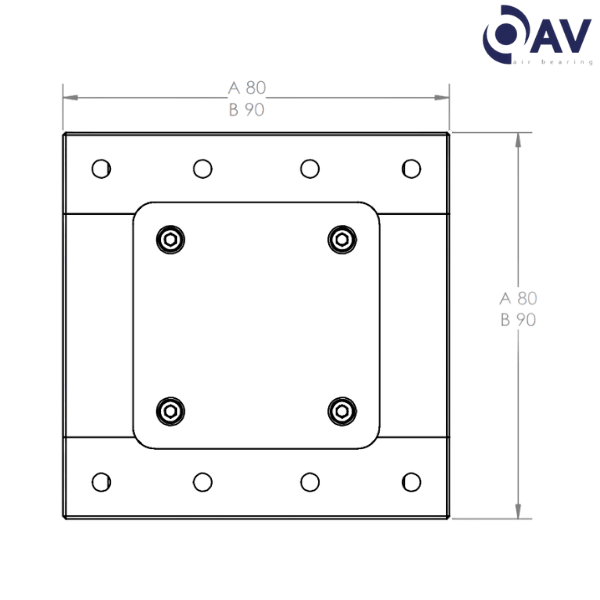

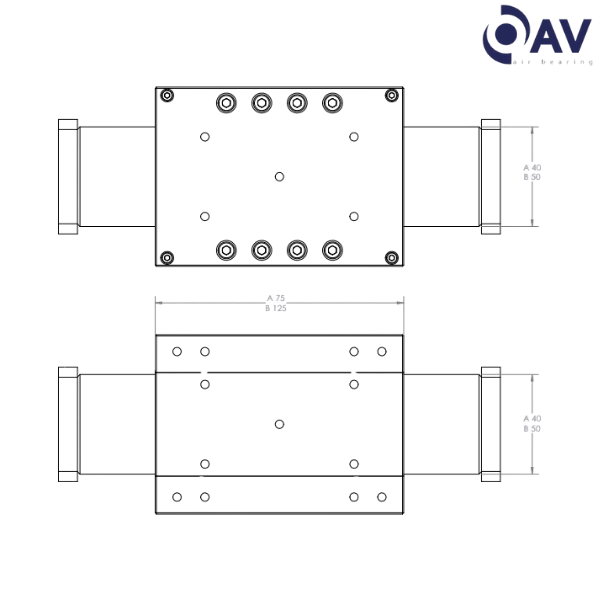

Carriage Size (mm) - 80 x 80
Carriage Length (mm) - 75
Travel (mm) - 50/100/200/300 or Custom Travel
Guidebar Length (mm) - Custom
Assembly Height (mm) - 80
Carriage Weight (kg) - 0.86
Total Weight (kg) - 2.8 (100 mm travel)
Z direction Load (N) - 551
Y direction Load (N) - 551
Air Flow (NLPM) - 4.6
Pitch (N-m) - 78
Roll (N-m) - 78
Yaw (N-m) - 78
Y Stiffness (N/μ) - 183
Z Stiffness (N/μ) - 183
Guidebar Size (mm) - 40 x 40
** Images are for representation purposes only
