BT8896-DSA3 RBC

Brand - RBC
Item Number - BT8896-DSA3 RBC
Category - ShimPack® Series Spherical Plain Angular Contact Bearings withTapered Bore, Double Acting

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter* (d) - 5.5 inch
Bore Diameter (d1) - 5.22 inch
Nominal Outside Diameter (D) - 8.75 inch
Maximum Outside Diameter (D) - 8.75 inch
Minimum Outside Diameter (D) - 8.7488 inch
Overall Width (F) - 5.48 (+0.000 to -0.025) inch
Inner Ring Width (B) - 4.95 (+0.000 to -0.005) inch
Outer Ring Width (C) - 2.615 (+0.000 to -0.005) inch
Sphere Diameter (K) - 8.156 inch
Axial Clearance** - 0.007/0.011
End to Hole (J) - 1.37 inch
Outer Ring Bore (L) - 6.5 inch
Maximum Housing Fillet (r2) - 0.18 inch
Approximate Weight - 48.6 lbs
Recomanded Maximum Shim Pack Compression - 255000 lbf
Inner Ring Clamping Force*** - 29000 lbf
Static Radial Load Limit - 1335800 lbf
Static Thrust Load Limit**** - 667100 lbf
Dynamic Radial Load Limit - 334000 lbf
Dynamic Thrust Load Limit**** - 166800 lbf
Maximum Housing Bore ISO N7 (Press Fit) - 8.7492 inch
Minimum Housing Bore ISO N7 (Press Fit) - 8.7474 inch
Basic Part Number - (-8896)

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 22.04 kg

Other salient points to be noted
• Ultimate static and impact loads should not exceed 150% of catalog rating.

* The nominal bore diameter is measured at the inner ring center.
** Clearance after shim pack compression.
*** Excessive clamping forces will cause loss of bearing clearance.
**** In cases where operating thrust load exceeds inner ring clamping force, engineering support is recommended.

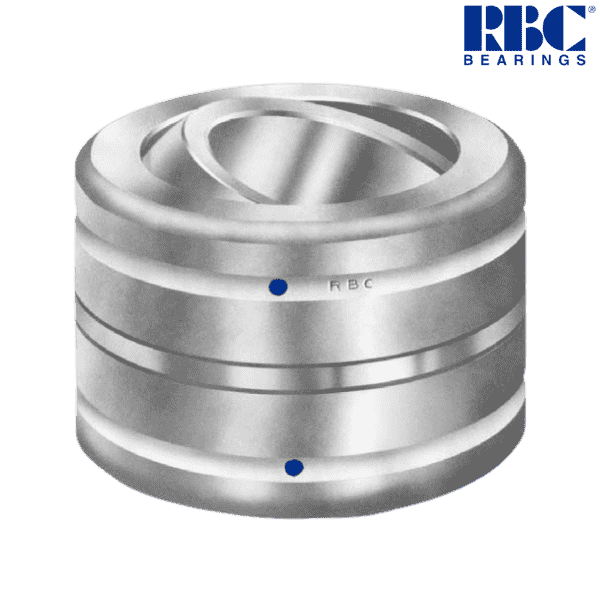

♦ ♦ Images are for representation purposes only
