BT6472-9L RBC

Brand - RBC
Item Number - BT6472-9L RBC
Category - Spherical Plain Bearing with Tapered Bore
Basic Part Number - (-6472)

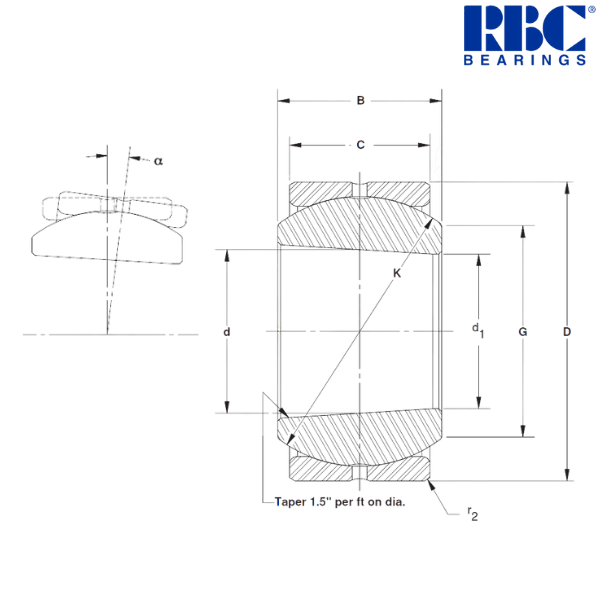

Principal Dimensions & Load Ratings (Imperial) :
Nominal Diameter of Inner Ring* (d) - 4 inch
Bore Diameter (d1) - 3.76 inch
Nominal Outside Diameter (D) - 7 inch
Maximum Outside Diameter (D) - 7 inch
Minimum Outside Diameter (D) - 6.999 inch
Inner Ring Width (B) - 4.225 (+0.000 to -0.005) inch
Outer Ring Width (C) - 3.375 (+0.000 to -0.005) inch
Sphere Diameter (K) - 6.475 inch
Unmounted Diametral Clearance - 0.005/0.009 inch
End Plate Diameter (G) - 4.9 inch
Tilt Angle (α) - 10°
Maximum Housing Fillet (r2) - 0.044 inch
Approximate Weight - 22.5 lbs
Inner Ring Clamping Force** - 25000 lbf
Static Radial Load Limit - 764800 lbf
Static Thrust Load Limit - 290400 lbf
Dynamic Radial Load Limit - 191200 lbf
Maximum Recommended Mounting Dimensions Housing Bore ISO N7 (Press Fit) - 6.9995 inch
Minimum Recommended Mounting Dimensions Housing Bore ISO N7 (Press Fit) - 6.998 inch
Maximum Recommended Mounting Dimensions Housing Bore ISO R7 (Press Fit) - 6.9979 inch
Minimum Recommended Mounting Dimensions Housing Bore ISO R7 (Press Fit) - 6.9963 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 10.204 kg

Other salient points to be noted :
• Outer rings of bearings size 72 and above are double fractured (suffix-9L).
• All dimensions apply before MoS2 coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.

* The nominal bore diameter is measured at the inner ring center.
** Higher clamping forces reduce bearing clearance.
