BT6064-DSA3 RBC

Brand - RBC
Item Number - BT6064-DSA3 RBC
Category - ShimPack® Series Spherical Plain Angular Contact Bearings withTapered Bore, Double Acting

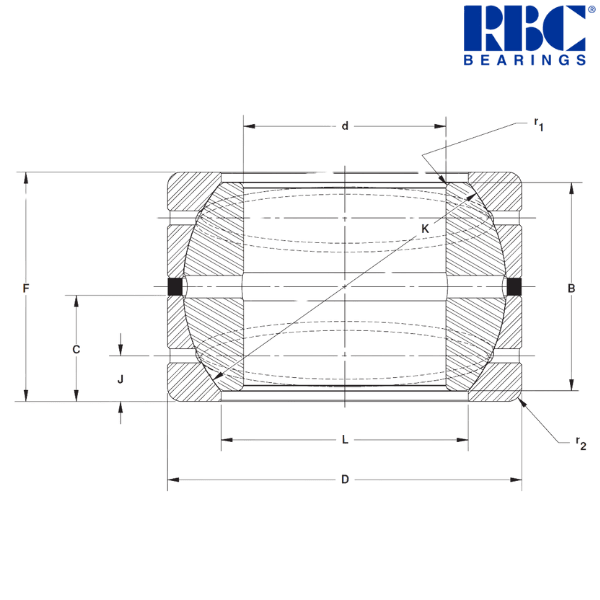

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter* (d) - 3.75 inch
Bore Diameter (d1) - 3.54 inch
Nominal Outside Diameter (D) - 6.25 inch
Maximum Outside Diameter (D) - 6.25 inch
Minimum Outside Diameter (D) - 6.249 inch
Overall Width (F) - 4.12 (+0.000 to -0.025) inch
Inner Ring Width (B) - 3.738 (+0.000 to -0.005) inch
Outer Ring Width (C) - 1.935 (+0.000 to -0.005) inch
Sphere Diameter (K) - 5.75 inch
Axial Clearance** - 0.007/0.011
End to Hole (J) - 0.781 inch
Outer Ring Bore (L) - 4.37 inch
Maximum Housing Fillet (r2) - 0.18 inch
Approximate Weight - 18.8 lbs
Recomanded Maximum Shim Pack Compression - 158000 lbf
Inner Ring Clamping Force*** - 23000 lbf
Static Radial Load Limit - 698200 lbf
Static Thrust Load Limit**** - 383800 lbf
Dynamic Radial Load Limit - 174600 lbf
Dynamic Thrust Load Limit**** - 96000 lbf
Maximum Housing Bore ISO N7 (Press Fit) - 6.2494 inch
Minimum Housing Bore ISO N7 (Press Fit) - 6.2478 inch
Basic Part Number - (-6064)

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 8.53 kg

Other salient points to be noted
• Ultimate static and impact loads should not exceed 150% of catalog rating.

* The nominal bore diameter is measured at the inner ring center.
** Clearance after shim pack compression.
*** Excessive clamping forces will cause loss of bearing clearance.
**** In cases where operating thrust load exceeds inner ring clamping force, engineering support is recommended.

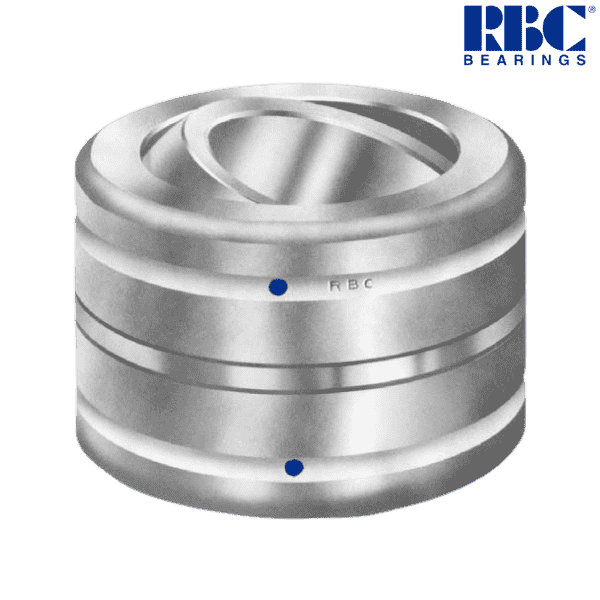

♦ ♦ Images are for representation purposes only
