BT4852-DSA3 RBC

Brand - RBC
Item Number - BT4852-DSA3 RBC
Category - ShimPack® Series Spherical Plain Angular Contact Bearings withTapered Bore, Double Acting

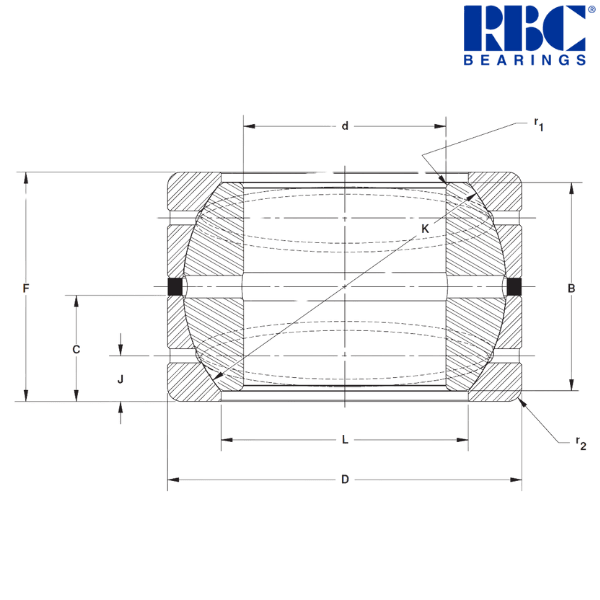

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter* (d) - 3 inch
Bore Diameter (d1) - 2.835 inch
Nominal Outside Diameter (D) - 5.125 inch
Maximum Outside Diameter (D) - 5.125 inch
Minimum Outside Diameter (D) - 5.124 inch
Overall Width (F) - 3.34 (+0.000 to -0.025) inch
Inner Ring Width (B) - 3.022 (+0.000 to -0.005) inch
Outer Ring Width (C) - 1.545 (+0.000 to -0.005) inch
Sphere Diameter (K) - 4.675 inch
Axial Clearance** - 0.005/0.009
End to Hole (J) - 0.656 inch
Outer Ring Bore (L) - 3.58 inch
Maximum Housing Fillet (r2) - 0.18 inch
Approximate Weight - 9.96 lbs
Recomanded Maximum Shim Pack Compression - 110000 lbf
Inner Ring Clamping Force*** - 20000 lbf
Static Radial Load Limit - 449800 lbf
Static Thrust Load Limit**** - 248400 lbf
Dynamic Radial Load Limit - 112500 lbf
Dynamic Thrust Load Limit**** - 62100 lbf
Maximum Housing Bore ISO N7 (Press Fit) - 5.1244 inch
Minimum Housing Bore ISO N7 (Press Fit) - 5.1228 inch
Basic Part Number - (-4852)

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 4.52 kg

Other salient points to be noted
• Ultimate static and impact loads should not exceed 150% of catalog rating.

* The nominal bore diameter is measured at the inner ring center.
** Clearance after shim pack compression.
*** Excessive clamping forces will cause loss of bearing clearance.
**** In cases where operating thrust load exceeds inner ring clamping force, engineering support is recommended.

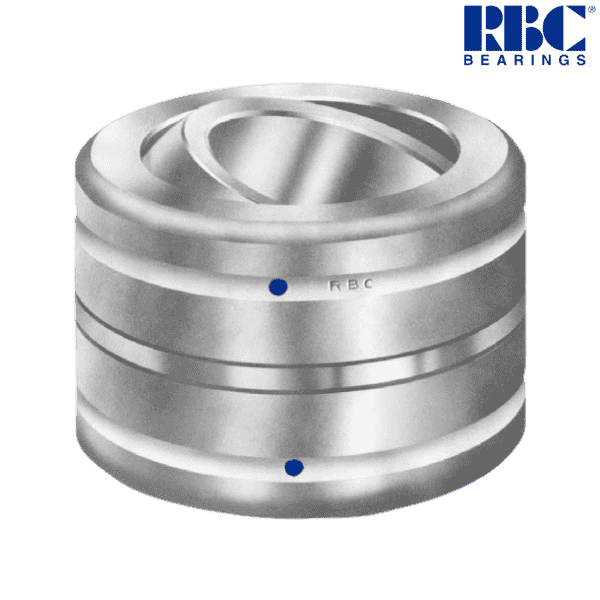

♦ ♦ Images are for representation purposes only
