BT3640-LSS RBC

Brand - RBC
Item Number - BT3640-LSS RBC
Category - Spherical Plain Bearing with Tapered Bore
Basic Part Number - (-3640)

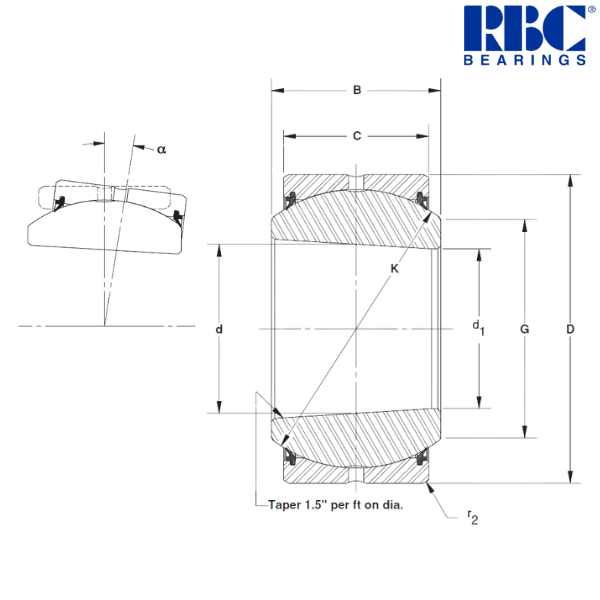

Principal Dimensions & Load Ratings (Imperial) :
Nominal Diameter of Inner Ring* (d) - 2.25 inch
Bore Diameter (d1) - 2.125 inch
Nominal Outside Diameter (D) - 3.9375 inch
Maximum Outside Diameter (D) - 3.9375 inch
Minimum Outside Diameter (D) - 3.9367 inch
Inner Ring Width (B) - 2.318 (+0.000 to -0.005) inch
Outer Ring Width (C) - 1.875 (+0.000 to -0.005) inch
Sphere Diameter (K) - 3.59 inch
Unmounted Diametral Clearance - 0.004/0.008 inch
End Plate Diameter (G) - 2.75 inch
Tilt Angle (α) - 14°
Maximum Housing Fillet (r2) - 0.032 inch
Approximate Weight - 4.4 lbs
Inner Ring Clamping Force** - 17000 lbf
Static Radial Load Limit - 235500 lbf
Static Thrust Load Limit - 52900 lbf
Dynamic Radial Load Limit - 58800 lbf
Maximum Recommended Mounting Dimensions Housing Bore ISO N7 (Press Fit) - 3.9371 inch
Minimum Recommended Mounting Dimensions Housing Bore ISO N7 (Press Fit) - 3.9357 inch
Maximum Recommended Mounting Dimensions Housing Bore ISO R7 (Press Fit) - 3.9359 inch
Minimum Recommended Mounting Dimensions Housing Bore ISO R7 (Press Fit) - 3.9345 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.995 kg

Other salient points to be noted :
• All dimensions apply before MoS2 coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.

* The nominal bore diameter is measured at the inner ring center.
** Higher clamping forces reduce bearing clearance.

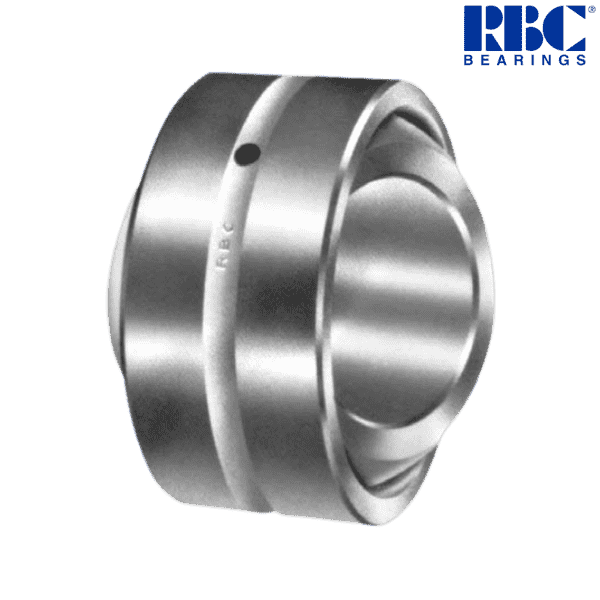

♦ ♦ Images are for representation purposes only
