BT3236-DSA3 RBC

Brand - RBC
Item Number - BT3236-DSA3 RBC
Category - ShimPack® Series Spherical Plain Angular Contact Bearings withTapered Bore, Double Acting

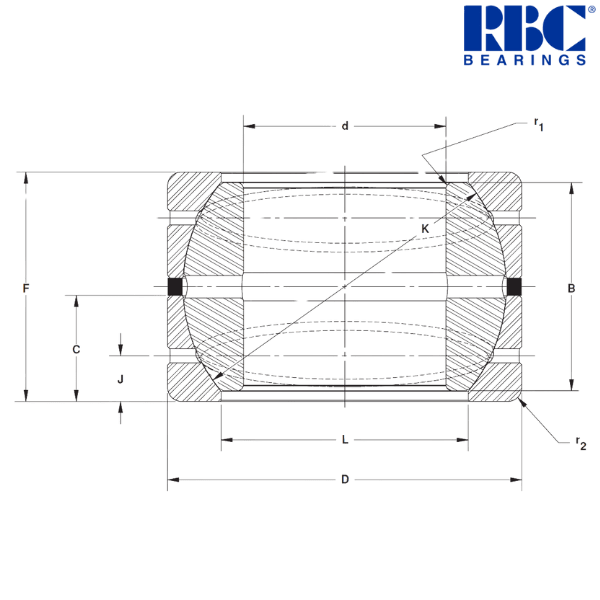

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter* (d) - 2 inch
Bore Diameter (d1) - 1.888 inch
Nominal Outside Diameter (D) - 3.5625 inch
Maximum Outside Diameter (D) - 3.5625 inch
Minimum Outside Diameter (D) - 3.5617 inch
Overall Width (F) - 2.28 (+0.000 to -0.025) inch
Inner Ring Width (B) - 2.07 (+0.000 to -0.005) inch
Outer Ring Width (C) - 1.05 (+0.000 to -0.005) inch
Sphere Diameter (K) - 3.235 inch
Axial Clearance** - 0.004/0.008
End to Hole (J) - 0.453 inch
Outer Ring Bore (L) - 2.5 inch
Maximum Housing Fillet (r2) - 0.14 inch
Approximate Weight - 3.14 lbs
Recomanded Maximum Shim Pack Compression - 50400 lbf
Inner Ring Clamping Force*** - 16000 lbf
Static Radial Load Limit - 210400 lbf
Static Thrust Load Limit**** - 115800 lbf
Dynamic Radial Load Limit - 52600 lbf
Dynamic Thrust Load Limit**** - 29000 lbf
Maximum Housing Bore ISO N7 (Press Fit) - 3.5621 inch
Minimum Housing Bore ISO N7 (Press Fit) - 3.5607 inch
Basic Part Number - (-3236)

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.42 kg

Other salient points to be noted
• Ultimate static and impact loads should not exceed 150% of catalog rating.

* The nominal bore diameter is measured at the inner ring center.
** Clearance after shim pack compression.
*** Excessive clamping forces will cause loss of bearing clearance.
**** In cases where operating thrust load exceeds inner ring clamping force, engineering support is recommended.

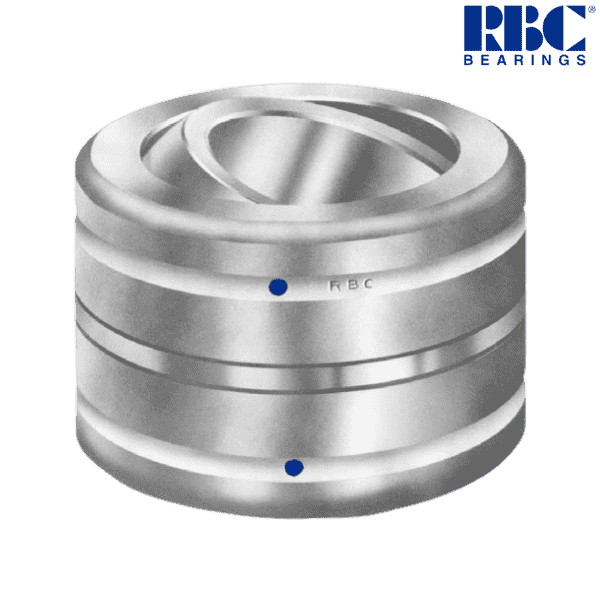

♦ ♦ Images are for representation purposes only
