BT2428-L RBC

Brand - RBC
Item Number - BT2428-L RBC
Category - Spherical Plain Bearing with Tapered Bore
Basic Part Number - (-2428)

Principal Dimensions & Load Ratings (Imperial) :
Nominal Diameter of Inner Ring* (d) - 1.5 inch
Bore Diameter (d1) - 1.415 inch
Nominal Outside Diameter (D) - 2.8125 inch
Maximum Outside Diameter (D) - 2.8125 inch
Minimum Outside Diameter (D) - 2.8119 inch
Inner Ring Width (B) - 1.58 (+0.000 to -0.005) inch
Outer Ring Width (C) - 1.312 (+0.000 to -0.005) inch
Sphere Diameter (K) - 2.515 inch
Unmounted Diametral Clearance - 0.003/0.007 inch
End Plate Diameter (G) - 1.95 inch
Tilt Angle (α) - 14°
Maximum Housing Fillet (r2) - 0.032 inch
Approximate Weight - 1.6 lbs
Inner Ring Clamping Force** - 13000 lbf
Static Radial Load Limit - 115400 lbf
Static Thrust Load Limit - 23600 lbf
Dynamic Radial Load Limit - 28800 lbf
Maximum Recommended Mounting Dimensions Housing Bore ISO N7 (Press Fit) - 2.8122 inch
Minimum Recommended Mounting Dimensions Housing Bore ISO N7 (Press Fit) - 2.811 inch
Maximum Recommended Mounting Dimensions Housing Bore ISO R7 (Press Fit) - 2.8112 inch
Minimum Recommended Mounting Dimensions Housing Bore ISO R7 (Press Fit) - 2.8101 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.726 kg

Other salient points to be noted :
• All dimensions apply before MoS2 coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.

* The nominal bore diameter is measured at the inner ring center.
** Higher clamping forces reduce bearing clearance.

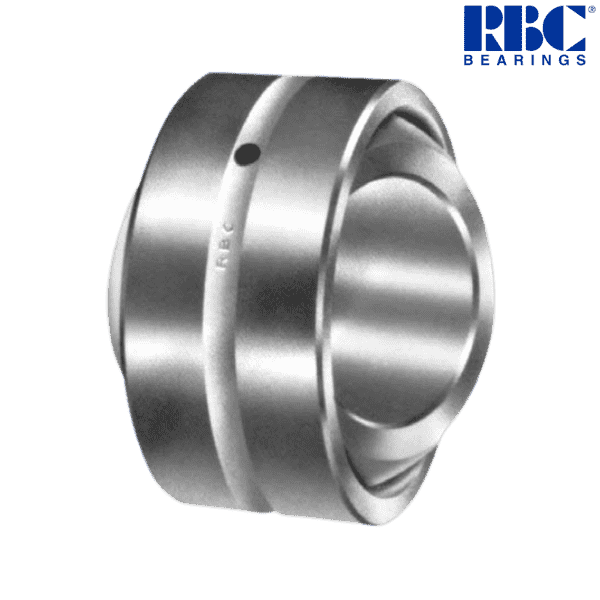

♦ ♦ Images are for representation purposes only
