BT2024-DSA3 RBC

Brand - RBC
Item Number - BT2024-DSA3 RBC

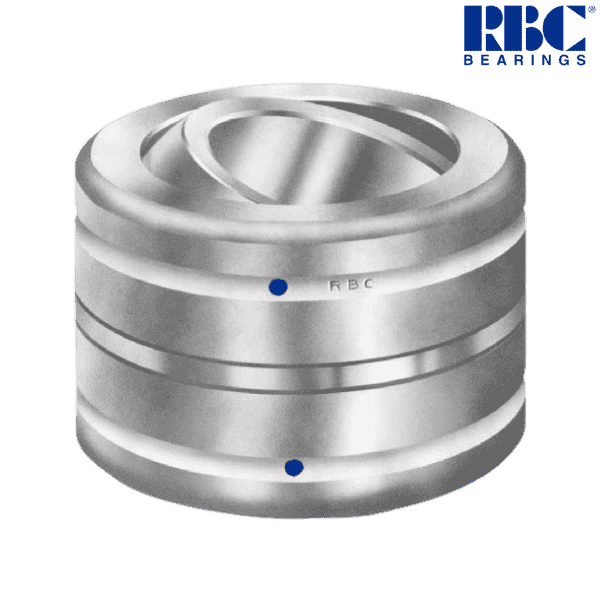

Category - ShimPack® Series Spherical Plain Angular Contact Bearings withTapered Bore, Double Acting

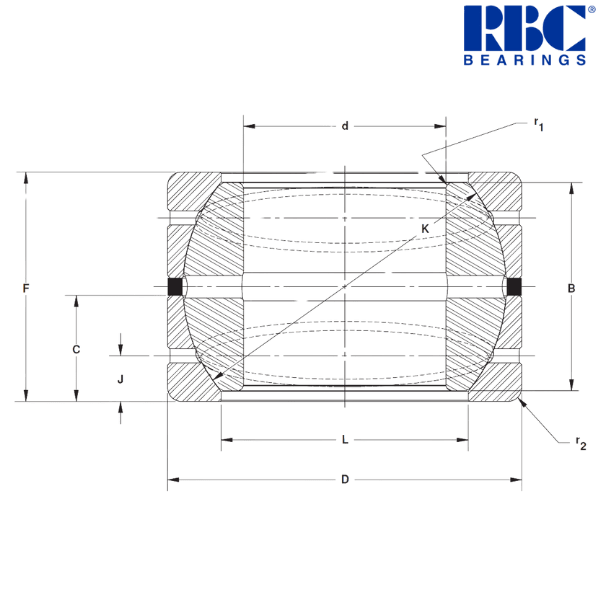

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter* (d) - 1.25 inch
Bore Diameter (d1) - 1.175 inch
Nominal Outside Diameter (D) - 2.4375 inch
Maximum Outside Diameter (D) - 2.4375 inch
Minimum Outside Diameter (D) - 2.4369 inch
Overall Width (F) - 1.5 (+0.000 to -0.025) inch
Inner Ring Width (B) - 1.39 (+0.000 to -0.005) inch
Outer Ring Width (C) - 0.66 (+0.000 to -0.005) inch
Sphere Diameter (K) - 2.155 inch
Axial Clearance** - 0.004/0.008
End to Hole (J) - 0.312 inch
Outer Ring Bore (L) - 1.66 inch
Maximum Housing Fillet (r2) - 0.1 inch
Approximate Weight - 0.85 lbs
Recomanded Maximum Shim Pack Compression - 30900 lbf
Inner Ring Clamping Force*** - 12000 lbf
Static Radial Load Limit - 89000 lbf
Static Thrust Load Limit**** - 51900 lbf
Dynamic Radial Load Limit - 22300 lbf
Dynamic Thrust Load Limit**** - 13000 lbf
Maximum Housing Bore ISO N7 (Press Fit) - 2.4372 inch
Minimum Housing Bore ISO N7 (Press Fit) - 2.436 inch
Basic Part Number - (-2024)

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.39 kg

Other salient points to be noted
• Ultimate static and impact loads should not exceed 150% of catalog rating.

* The nominal bore diameter is measured at the inner ring center.
** Clearance after shim pack compression.
*** Excessive clamping forces will cause loss of bearing clearance.
**** In cases where operating thrust load exceeds inner ring clamping force, engineering support is recommended.
